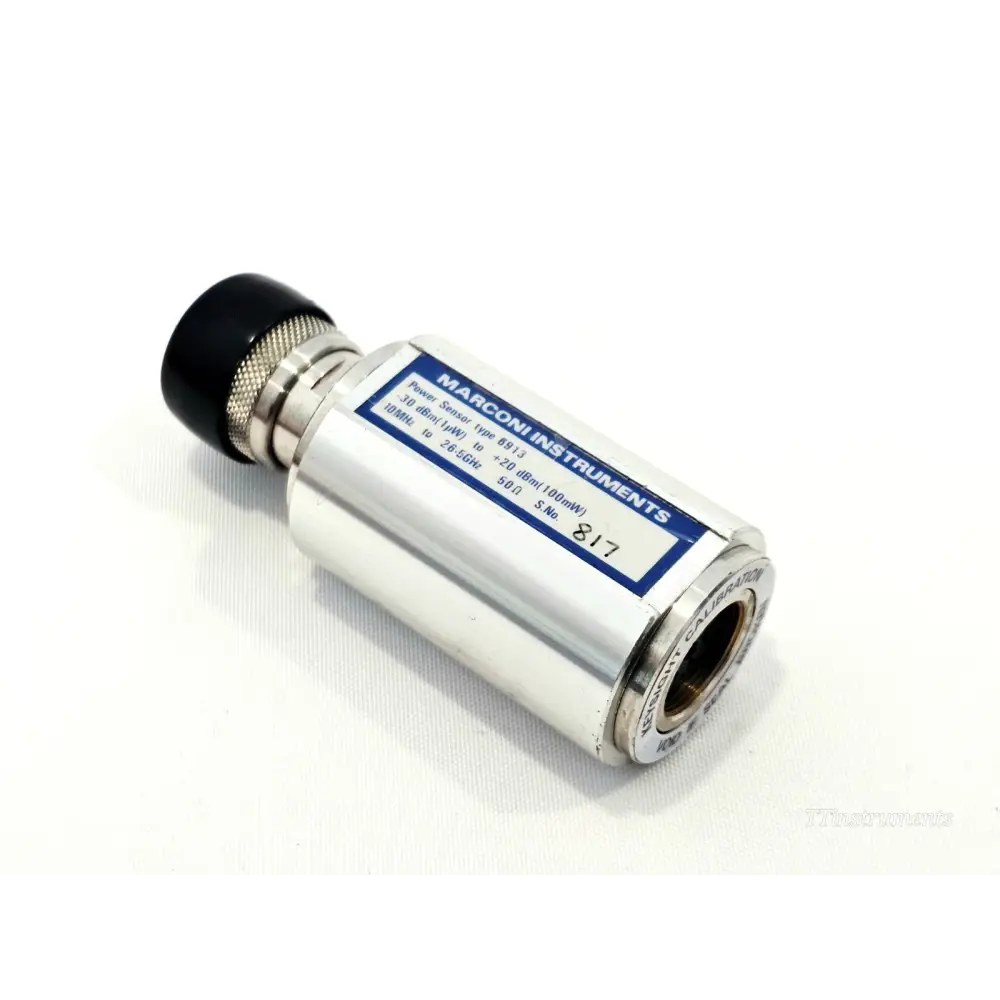

Marconi 6913 RF power sensor with MPC 3.5 mm male connector, front view

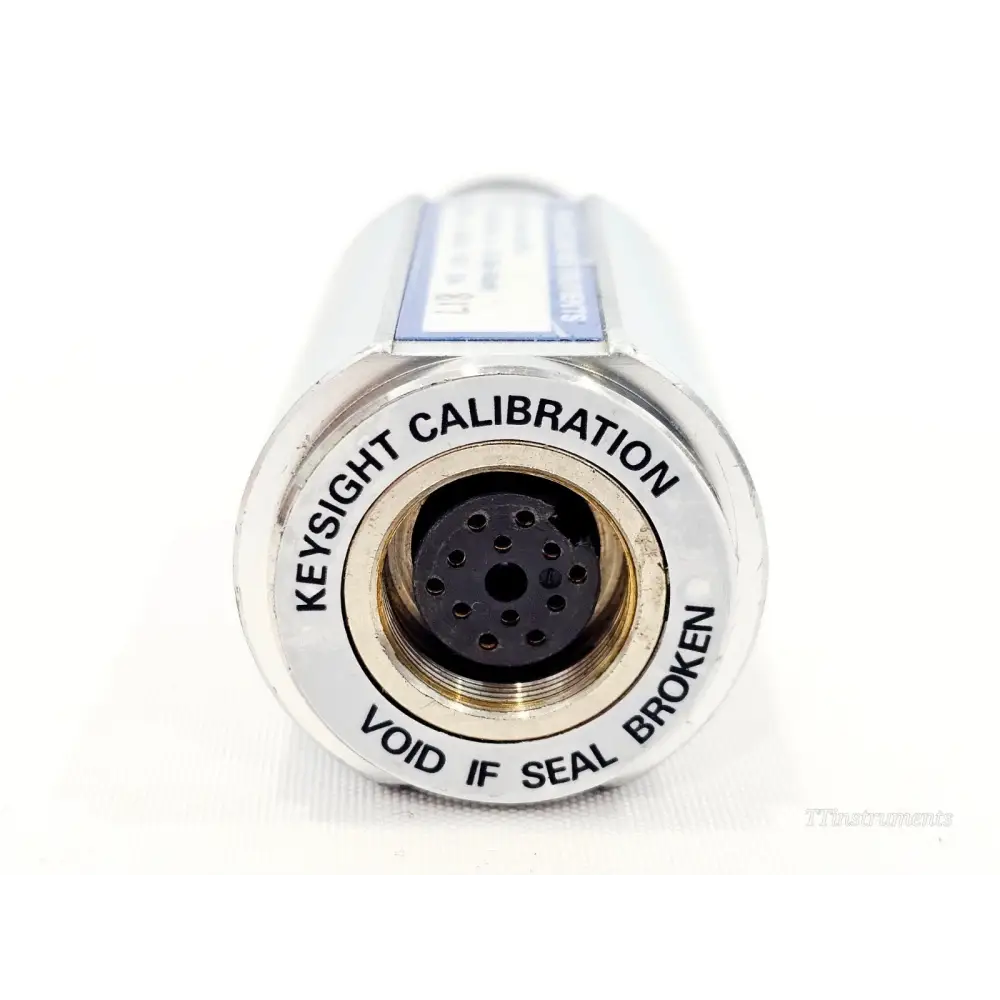

Marconi IFR 6913 26.5 GHz thermocouple power sensor body and connector detail

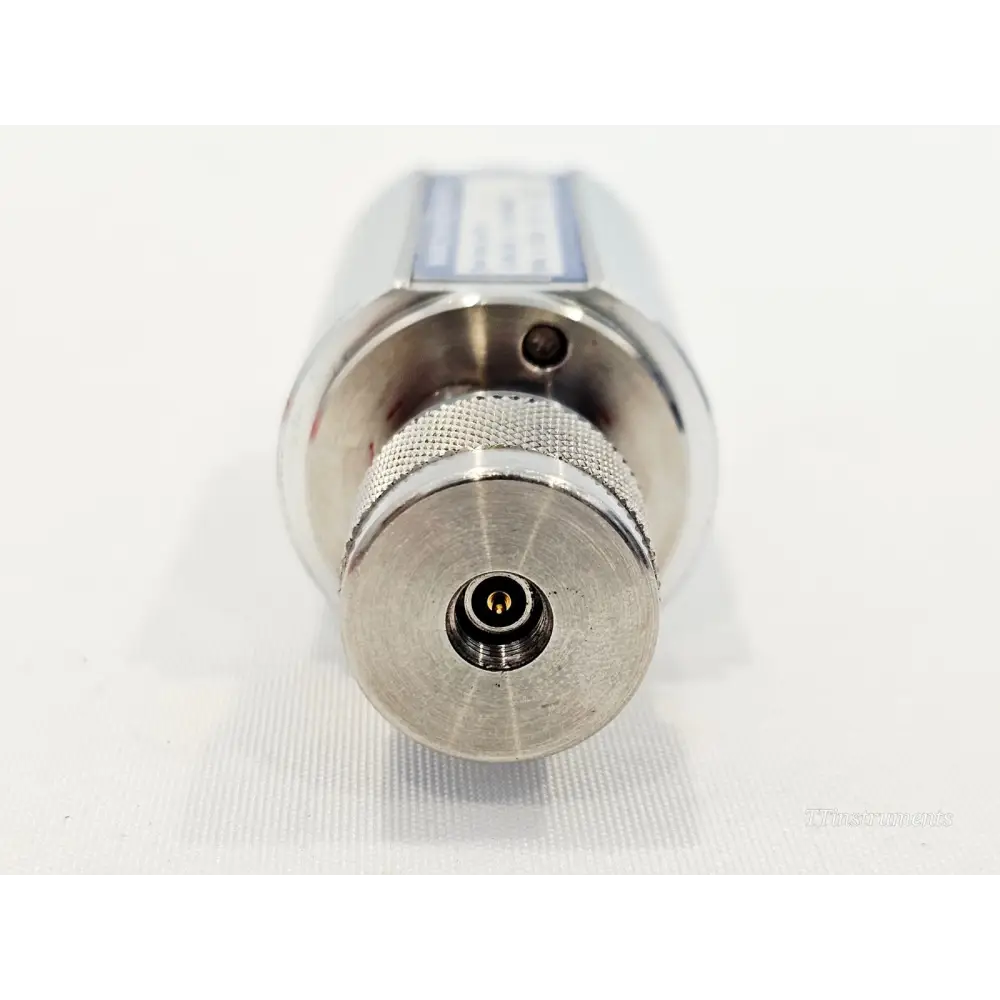

Marconi 6913 power sensor multiway output connector end for power meter cable

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Marconi Power Sensor 6913 10 MHz to 26.5 GHz -30 to +20 dBm

Name: Marconi Power Sensor 6913 10 MHz to 26.5 GHz -30 to +20 dBm
Brand: Marconi
SKU: 7966 3A03 ER60
Price: 212.5 GBP
Availability: OutOfStock

The Marconi 6913 is a medium power thermocouple RF power sensor covering 10 MHz to 26.5 GHz with a dynamic range of -30 dBm to +20 dBm (1 µW to 100 mW), designed for use with compatible IFR/Marconi/Aeroflex power meters.

• Wideband 10 MHz to 26.5 GHz frequency coverage with MPC 3.5 mm male connector
• Dynamic range of -30 dBm to +20 dBm (1 µW to 100 mW) with max RF input of +25 dBm CW
• Part of the IFR 6900 series — individually calibrated for high measurement accuracy

Manufacturer

Marconi

Model

6913

Condition

Used

In stock

SKU

7966 3A03

£212.50

Power Sensors
RF & Microwave
RF Components

Make an Offer

Condition: Used

The Marconi 6913 is a used medium power thermocouple RF power sensor in good working condition. Part of the IFR/Marconi 6900 series, the 6913 covers 10 MHz to 26.5 GHz and connects to compatible IFR, Marconi, or Aeroflex power meters via its multiway output connector.

Typically includes:
• Marconi 6913 RF power sensor

Product Overview

Condition: Used

Typically includes:
• Marconi 6913 RF power sensor

Manufacturer's Description

The Marconi (IFR/Aeroflex) 6913 is a medium power thermocouple RF power sensor and forms part of the 6910 series within the broader IFR 6900 series sensor family. It is designed for use with compatible IFR, Marconi, and Aeroflex power meters including the 6950, 6960, 6960B, 6970, and 6200B series microwave test sets. Each sensor is supplied with individual calibration data and features an excellent return loss specification to minimise mismatch errors in power measurement. The 6913 is fitted with a precision MPC 3.5 mm male connector, making it suited for microwave measurements up to 26.5 GHz. A multiway output socket connects the sensor to the power meter via a sensor cable. Sensor calibration and linearity factors can be entered into compatible meters to maximise measurement accuracy.

Frequency Range: 10 MHz to 26.5 GHz
Power Range: -30 dBm to +20 dBm (1 µW to 100 mW)
Max RF Input (CW): +25 dBm (300 mW)
Max RF Input (Peak): +42 dBm (15 W) for 2 ms
Dynamic Range: 50 dB
RF Connector: MPC 3.5 mm, male, 50 Ω
Sensor Type: Medium power thermocouple
Resolution: 0.01%

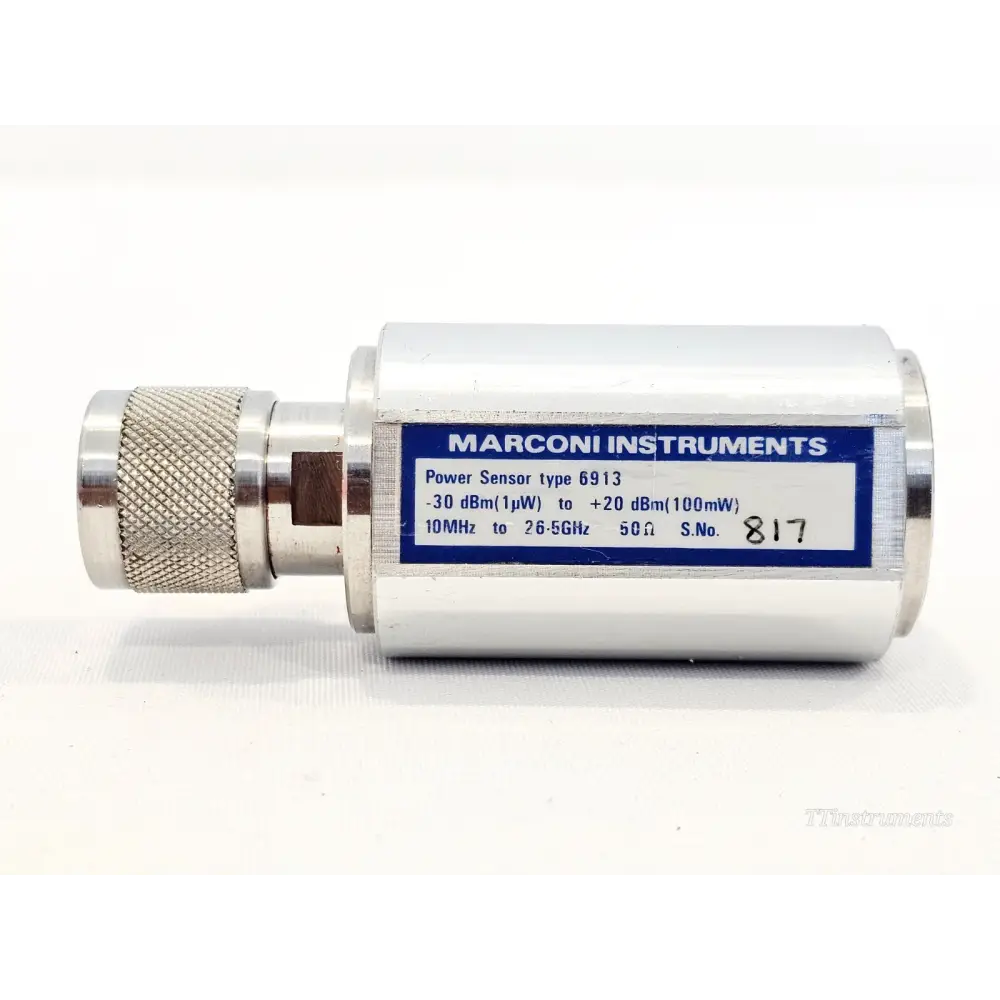

Size: 80 mm long, 33.5 mm diameter
Weight: 140 g
Order Code: 56913/900
Compatible Meters: IFR/Marconi/Aeroflex 6950, 6960, 6960B, 6970, 6200B series

Resources

Aeroflex IFR Marconi 6910 Series Power Sensor Datasheet (covers 6913): Download PDF

IFR 6900 Series RF Power Sensors Instruction Manual (Artisan TG hosted): Download PDF

Marconi 6970 RF Power Meter Operating Manual — includes 6913 sensor specs: Download PDF
