Condition: New other (see details)

Open box, as pictured. The Keysight N5440A is a kit of five 450Ω ceramic ZIF tips for the InfiniiMax III probing system, providing 28 GHz bandwidth with extremely low signal loading. Designed for differential measurements with the N5439A ZIF probe head, these ESD-sensitive ceramic tips can be left soldered to the DUT between probing sessions.

The following items are included in the sale:

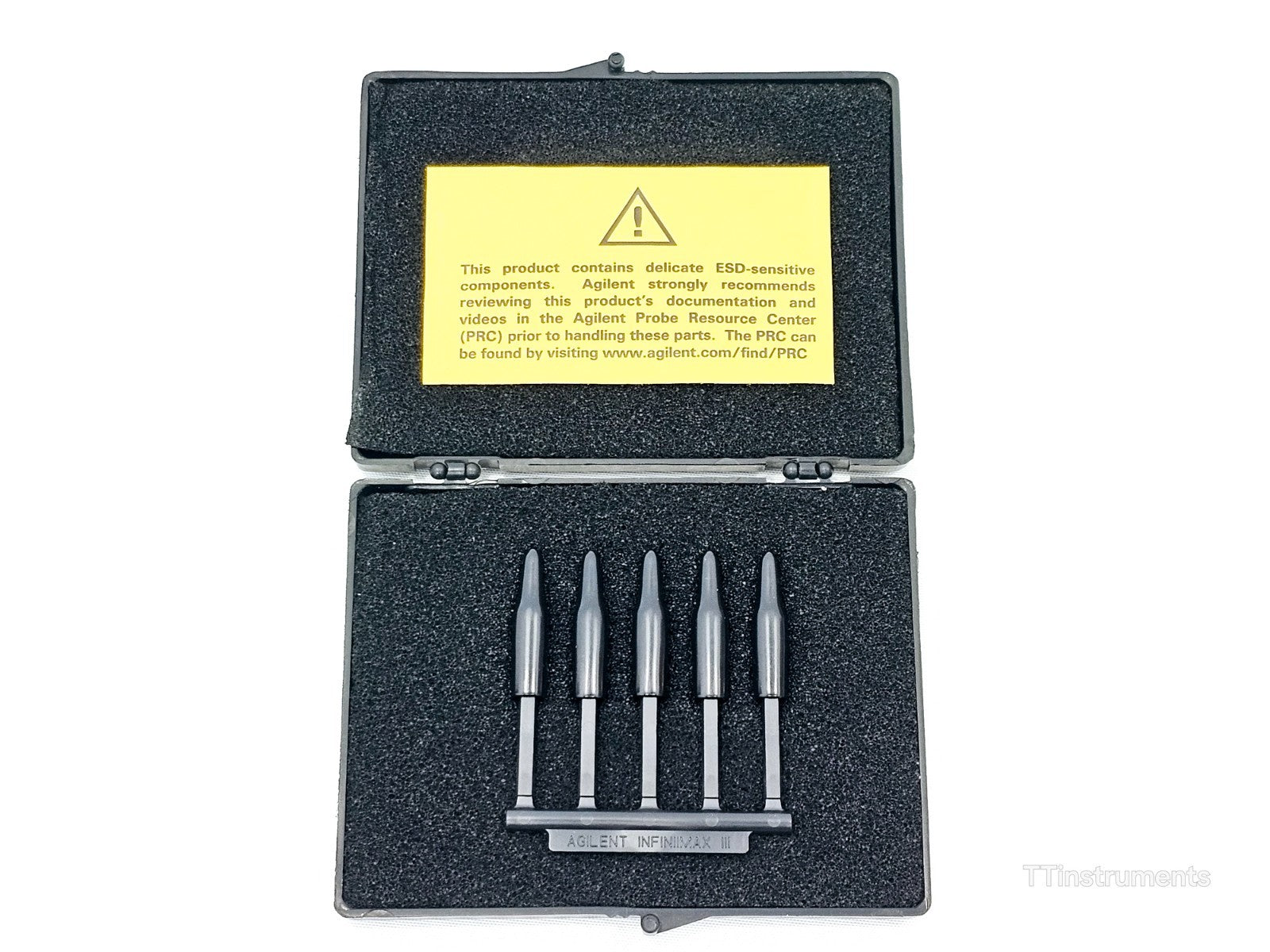

• 5x Keysight N5440A 450Ω ceramic ZIF probe tips (in foam-lined protective carry case)
• Protective plastic carry case with ESD warning insert
• Tip carrier sporks (for soldering assistance, attached to tips)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Keysight (formerly Agilent) N5440A is a replacement tip kit for the InfiniiMax III probing system, providing five 450Ω ceramic Zero Insertion Force (ZIF) tips for use with the N5439A ZIF probe head. Designed for high-speed digital and RF probing applications, the N5440A delivers 28 GHz of bandwidth with normal sensitivity and the industry's lowest signal loading in the differential measurement configuration.

Because of their extremely low loading, the ZIF tips can be left soldered to the DUT as the probe head is moved from one probing site to the next, significantly reducing setup time and minimising signal disturbance. Each tip ships on a plastic carrier (spork) that aids in positioning and soldering the tip to the device under test; the carrier is then snapped off and discarded after soldering.

The N5440A is part of Keysight's InfiniiMax III RCRC-architecture probing ecosystem and is compatible with all InfiniiMax III and III+ probe amplifiers. It is not compatible with InfiniiMax I or II probe amplifiers.

Key Specifications:
Model Number: N5440A
Tip Type: Ceramic ZIF (Zero Insertion Force)
Sensitivity: Normal Sensitivity
Tip Impedance: 450Ω
Bandwidth: 28 GHz (with N5439A ZIF probe head and N2803A 30 GHz probe amp)
Warranted Bandwidth: 26 GHz (N5440A/N5439A with N2803A)
DC Input Resistance (Differential): Rdiff = 100 kΩ ±2%
DC Input Resistance (Single-ended): Rse = 50 kΩ ±2%
Input Voltage Range: 1.6 Vpp ±0.8 V (HD <-38 dB); 2.5 Vpp ±1.25 V (HD <-34 dB)
Tip Spacing (Variable): 5 mil – 80 mil (0.127 mm – 2 mm)
Quantity per Kit: 5 tips with plastic spork carriers
Compatible Probe Head: N5439A InfiniiMax III ZIF Probe Head
Probing System: Keysight InfiniiMax III / III+
Amp Compatibility: InfiniiMax III and III+ probe amplifiers only
ESD Sensitivity: Yes — static sensitive; wrist-strap required when handling
Country of Origin: Singapore

Keysight InfiniiMax III/III+ Probing System datasheet — full product overview, specifications and probe head compatibility table: Download PDF

Keysight InfiniiMax III Series Probes User's Guide (N2800-97010) — installation, operation and specifications for all InfiniiMax III probe heads including N5440A: Download PDF

Keysight N2800A-Series InfiniiMax III Probes Configuration Card — recommended probe head configurations and system overview: Download PDF

Keysight Infiniium Oscilloscope Probes and Accessories datasheet — full compatibility table including N5440A specifications: Download PDF
