Condition: Used

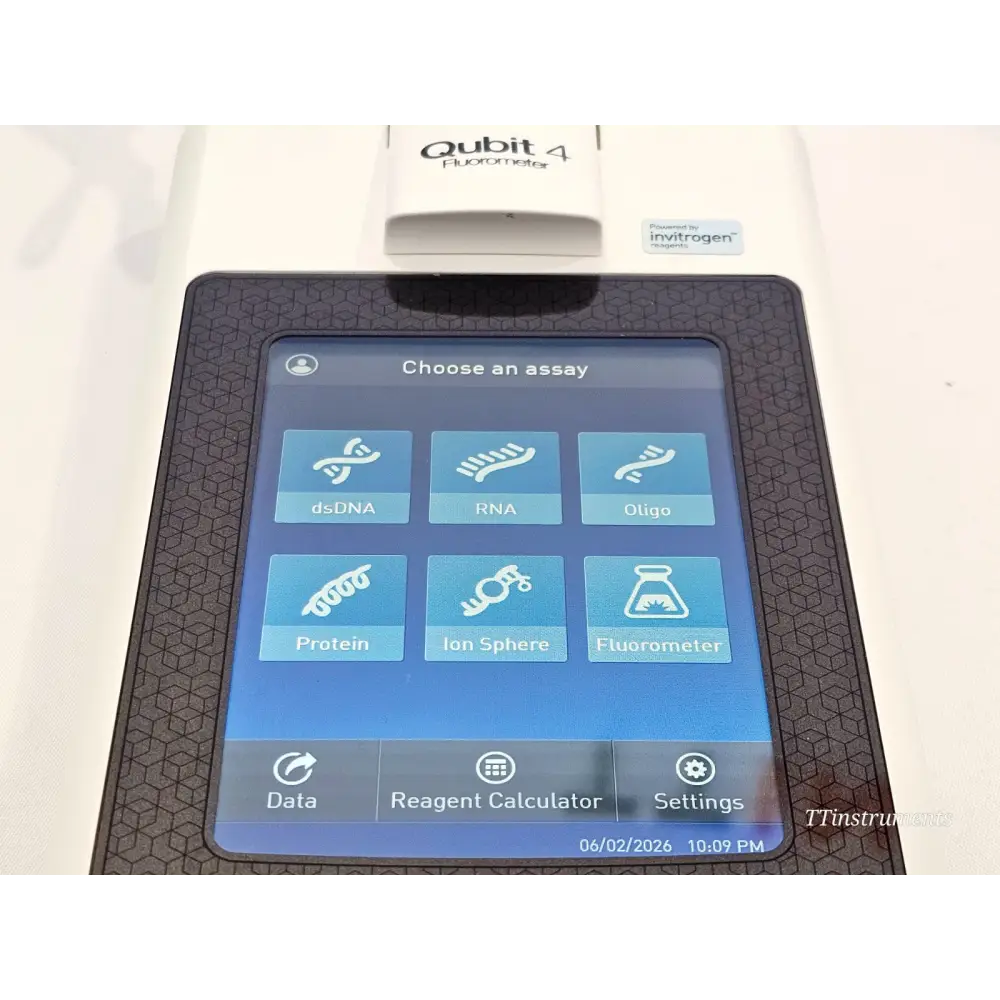

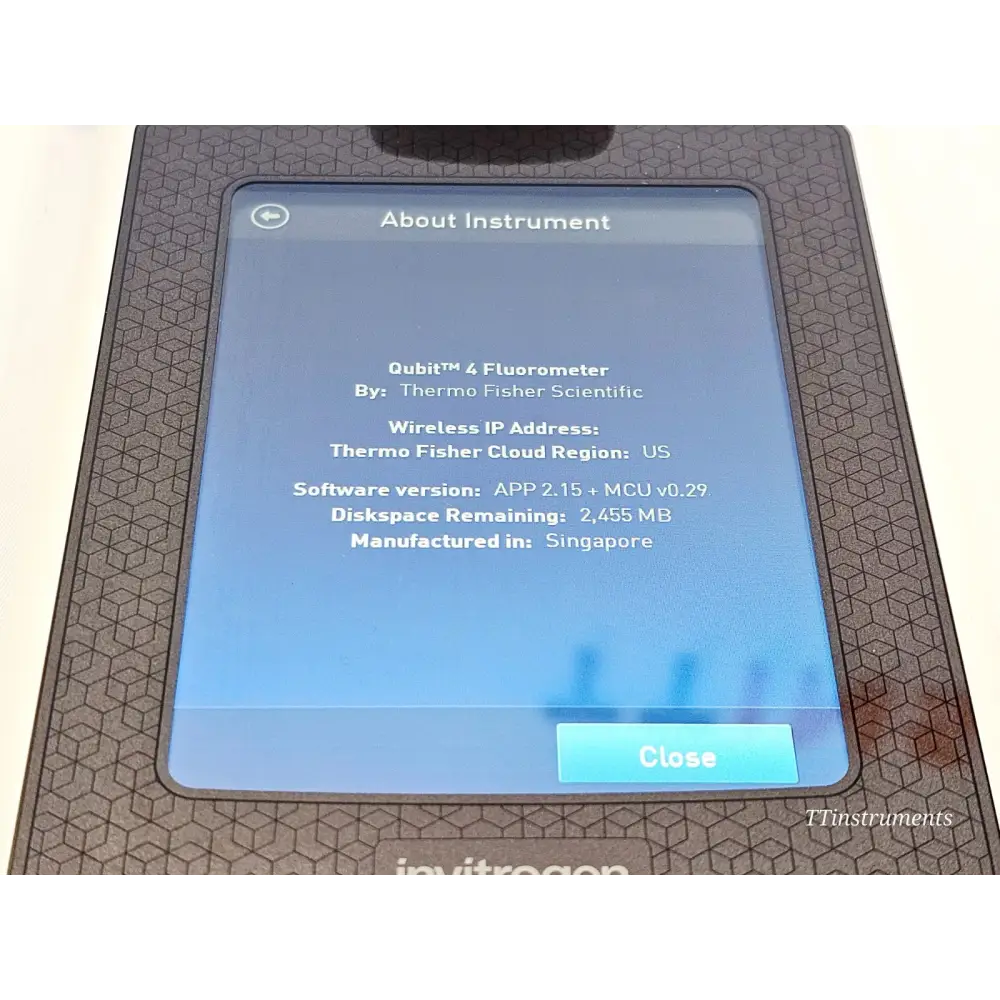

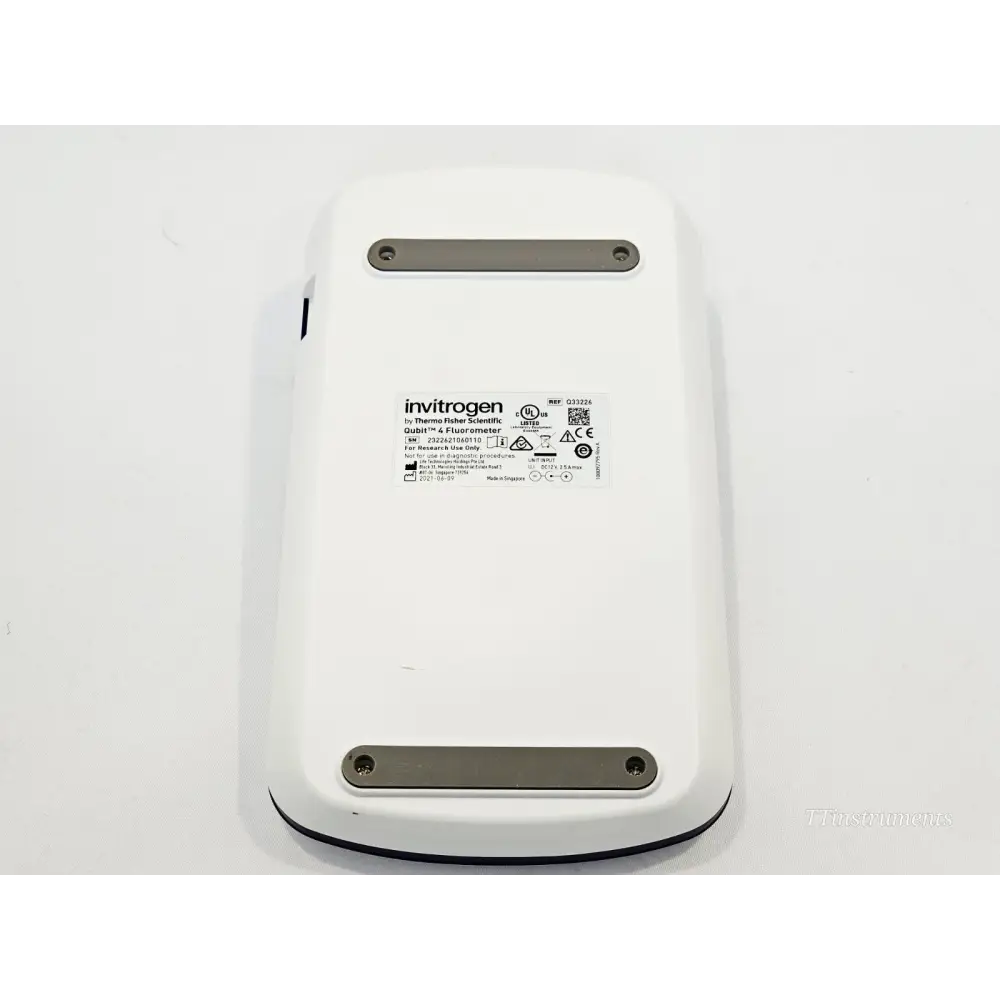

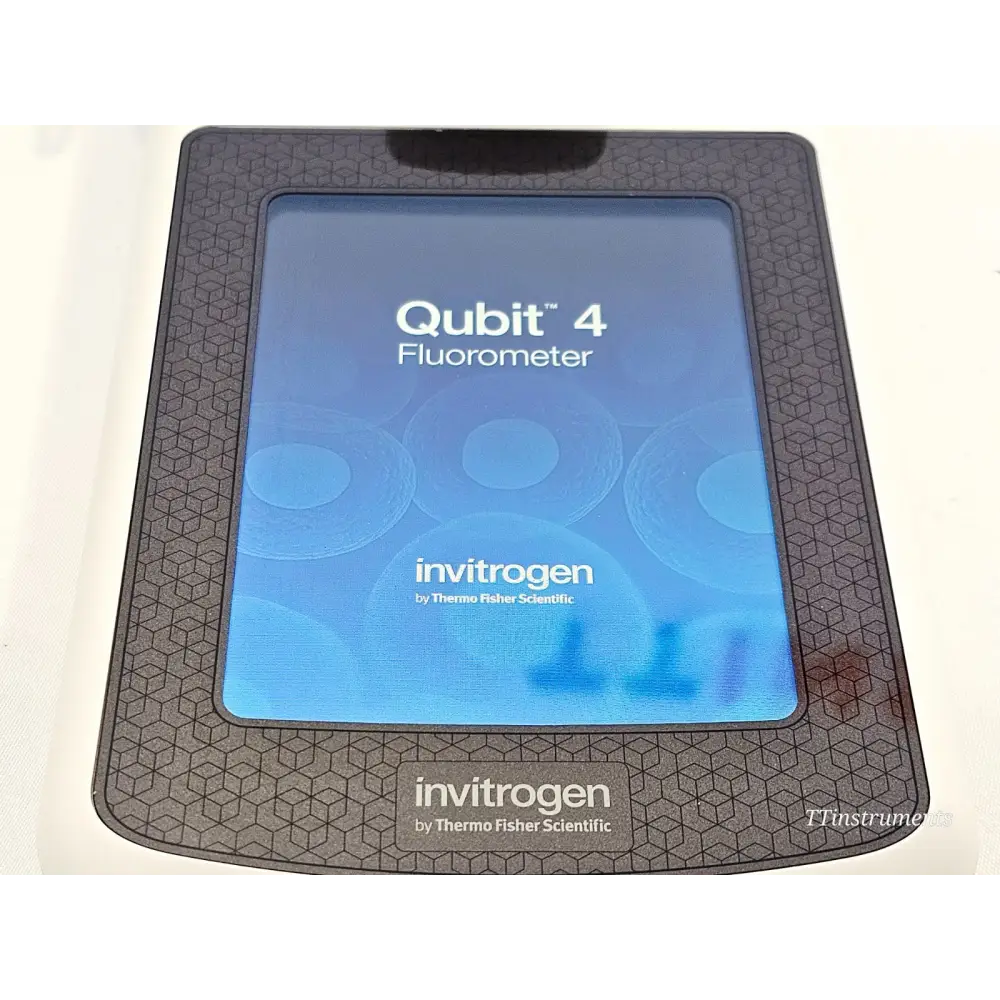

Invitrogen Qubit 4 Fluorometer (REF Q33226) by Thermo Fisher Scientific. Tested and fully functional, removed from a working environment. Serial number 23226210A0110, manufactured 2021-06-09. Unit powers on and displays the Qubit 4 Fluorometer boot screen correctly.

Included in the sale:

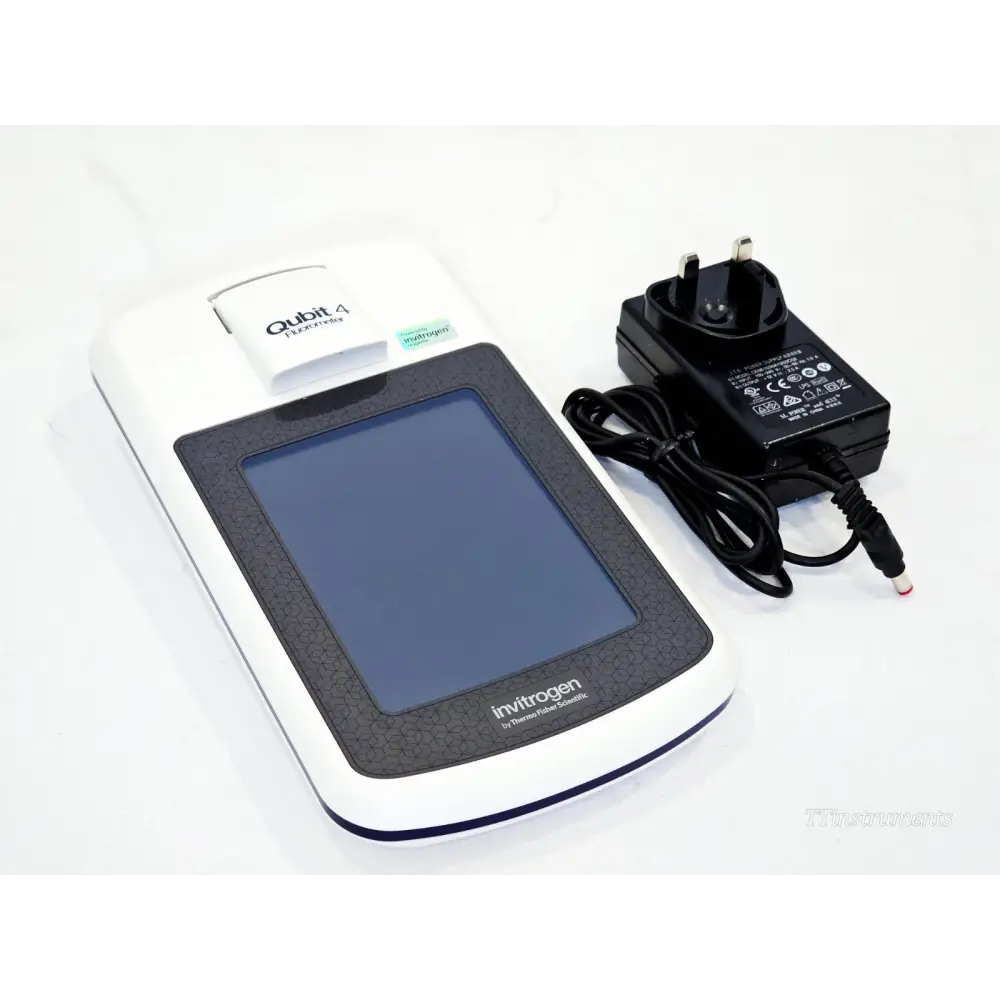

• 1x Invitrogen Qubit 4 Fluorometer (REF Q33226)
• 1x UK mains power supply (12V DC)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Invitrogen Qubit 4 Fluorometer by Thermo Fisher Scientific is a high-precision benchtop instrument designed for fast, accurate fluorescence-based quantitation of DNA, RNA, and protein in molecular biology research. It uses target-specific fluorescent dyes that emit a signal only when bound to the molecule of interest, delivering far greater sensitivity and specificity than traditional UV absorbance methods. The instrument is re-engineered to support the Qubit RNA IQ (integrity and quality) assay, enabling researchers to distinguish intact from degraded RNA in just two steps.

Key Features:
- Fast and highly accurate quantitation of DNA, RNA, and protein in less than 3 seconds per sample
- Measures intact RNA in less than 5 seconds per sample
- Accepts sample volumes of only 1–20 µL, even from very dilute samples
- Large 5.7-inch colour touchscreen for intuitive workflow navigation
- On-board Reagent Calculator for working solution preparation
- Stores results from up to 1,000 samples
- Exports data via USB drive, USB cable to computer, or WiFi to Thermo Fisher Connect Cloud
- Compatible with MyQubit software and web tool for custom assay creation
- Supports multiple languages: English, French, Spanish, Italian, German, Simplified Chinese, and Japanese
- Graphical display indicates extended range or out-of-range samples
- For Research Use Only — not for diagnostic procedures

Technical Specifications:
Catalog Number: Q33226
Dynamic Range: 5 orders of magnitude
Processing Time: ≤5 seconds per sample
Light Sources: Blue LED (max ~470 nm), Red LED (max ~635 nm)
Excitation Filters: Blue 430–495 nm; Red 600–645 nm
Emission Filters: Green 510–580 nm; Red 665–720 nm
Detectors: Photodiodes with measurement capability 300–1000 nm
Calibration Type: 2- or 3-point standard
Tube Type: 0.5 mL thin-wall PCR (polypropylene) tubes
Warm-up Time: <35 seconds
USB Drive Capacity: 4 GB
Operating Temperature: 10–40°C
Operating Humidity: 20–80% (non-condensing)
Operating Power: 100–240 VAC, 1.0 A / 1.2 A
Frequency: 50/60 Hz

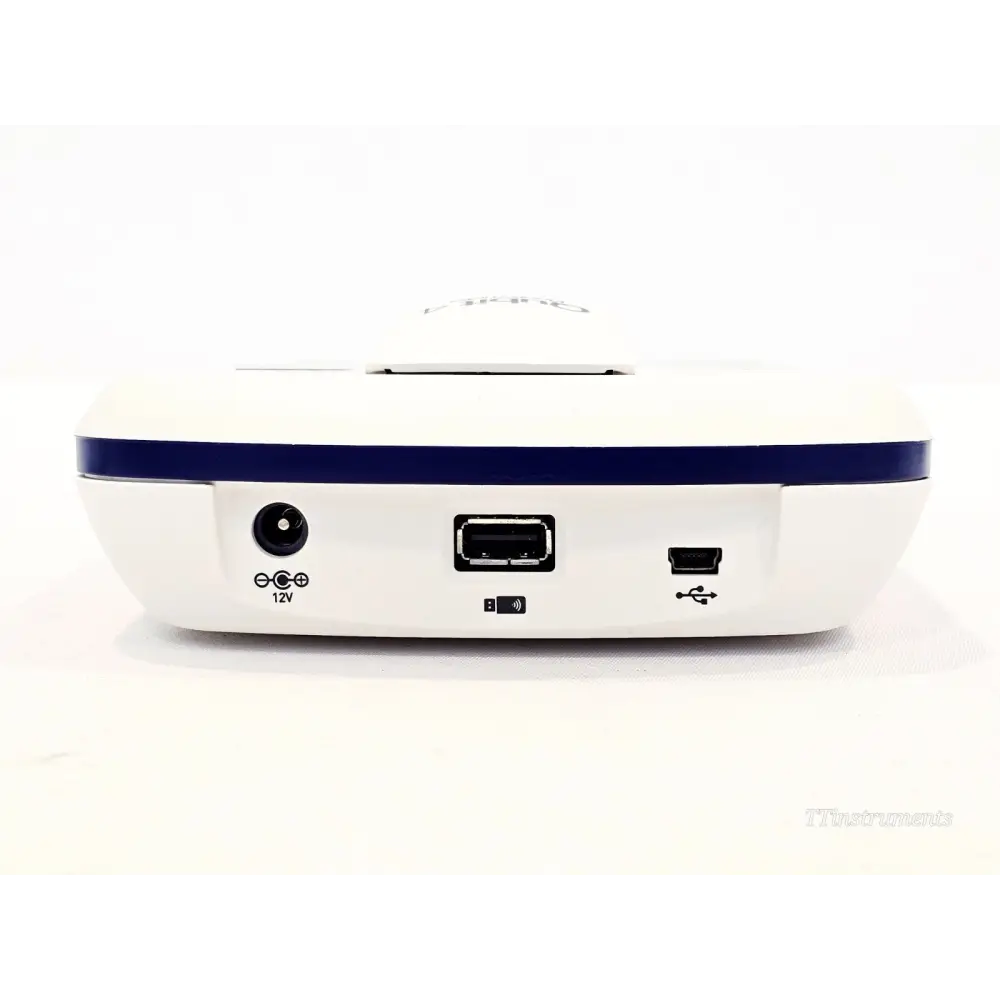

Electrical Input: 12 VDC, 2.5 A
Dimensions (W x D x H): 136 x 250 x 55 mm (5.4 x 10 x 2.2 in)
Made in: Singapore

Qubit 4 Fluorometer User Guide (MAN0017209 Rev D.0) — full operating instructions, specifications, and assay procedures: Download PDF

Qubit 4 Assays Quick Reference Guide (MAN0017210) — concise assay protocols for use with the Qubit 4 Fluorometer: Download PDF
