Condition: Used

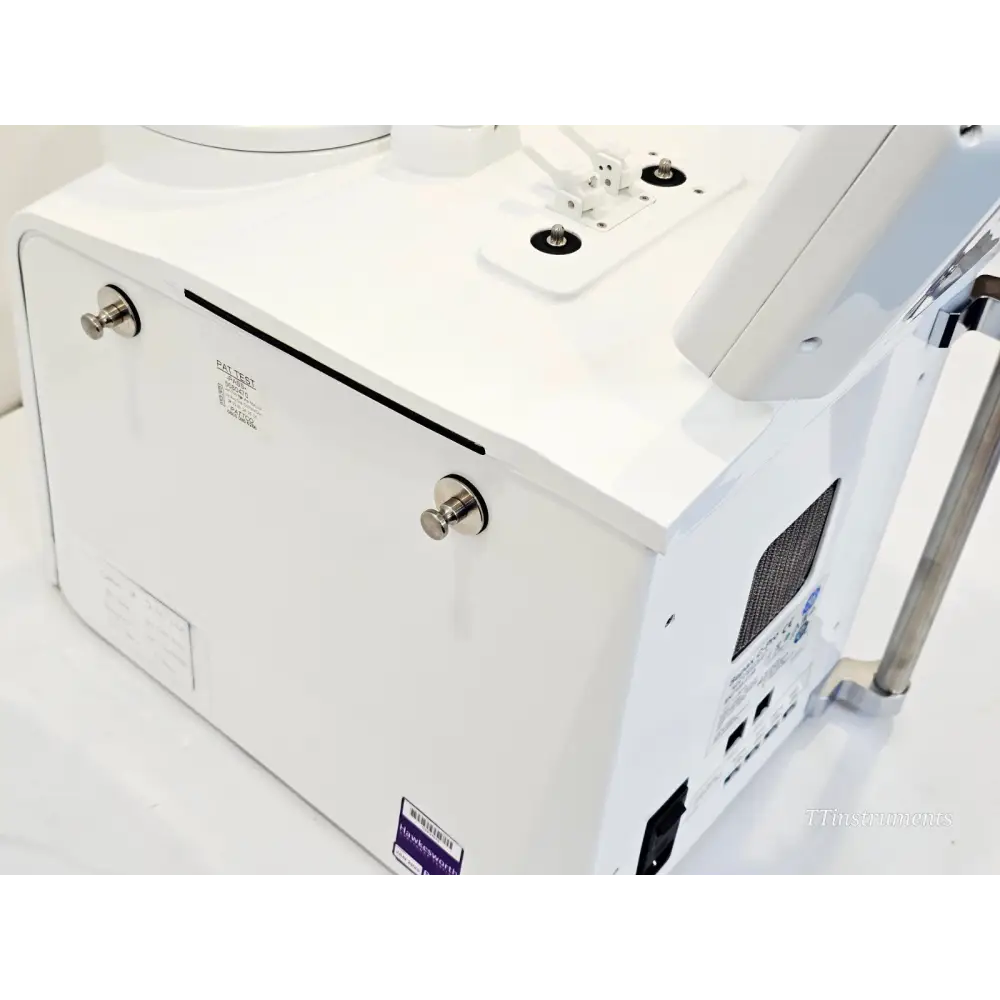

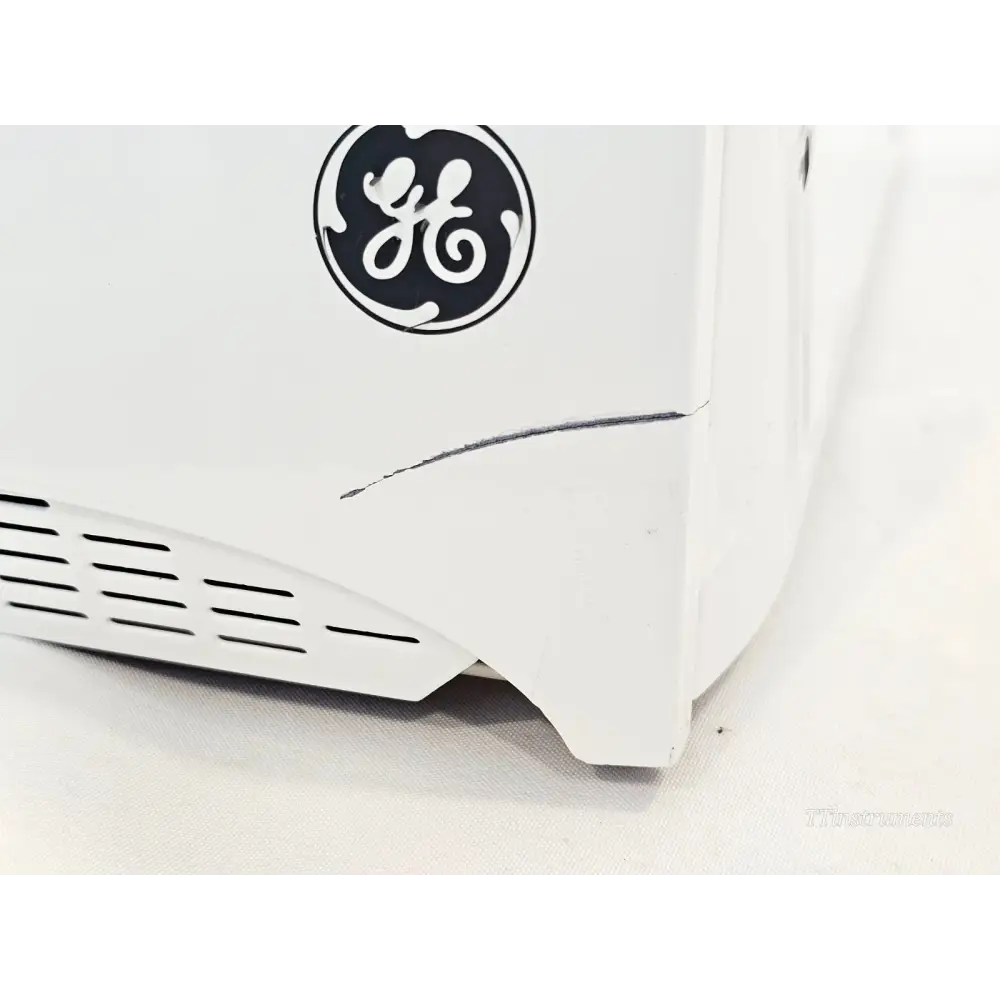

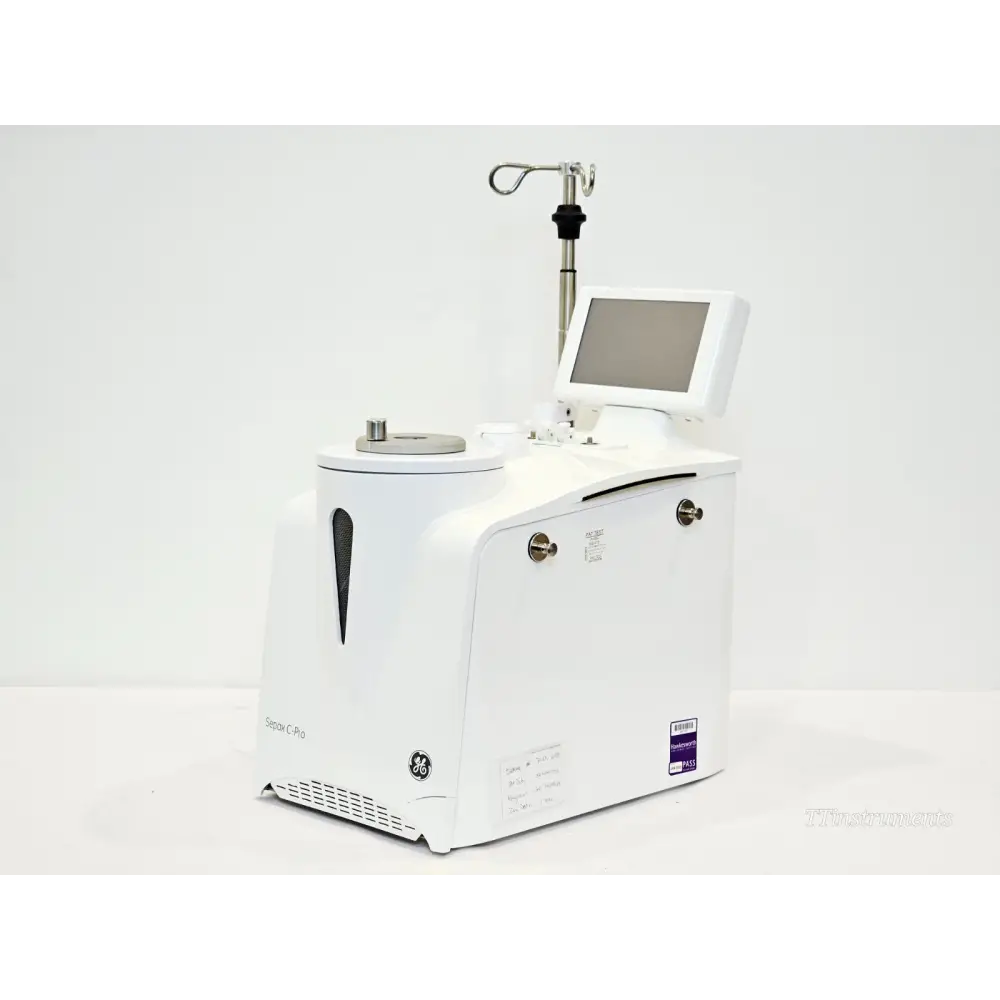

Three units available, all removed from a working environment. Each unit powers on and operates correctly with a responsive colour touchscreen. Note: there is a small crack on the bottom right of each instrument, which appears to be a common weak point on this model. Serial number visible on rear panel label (SN71255-4148 on pictured unit). PAT test label and Hawkesworth service label visible on side panel.

Included in the sale:
• GE Cytiva Sepax C-Pro Cell Processing Instrument (2018)

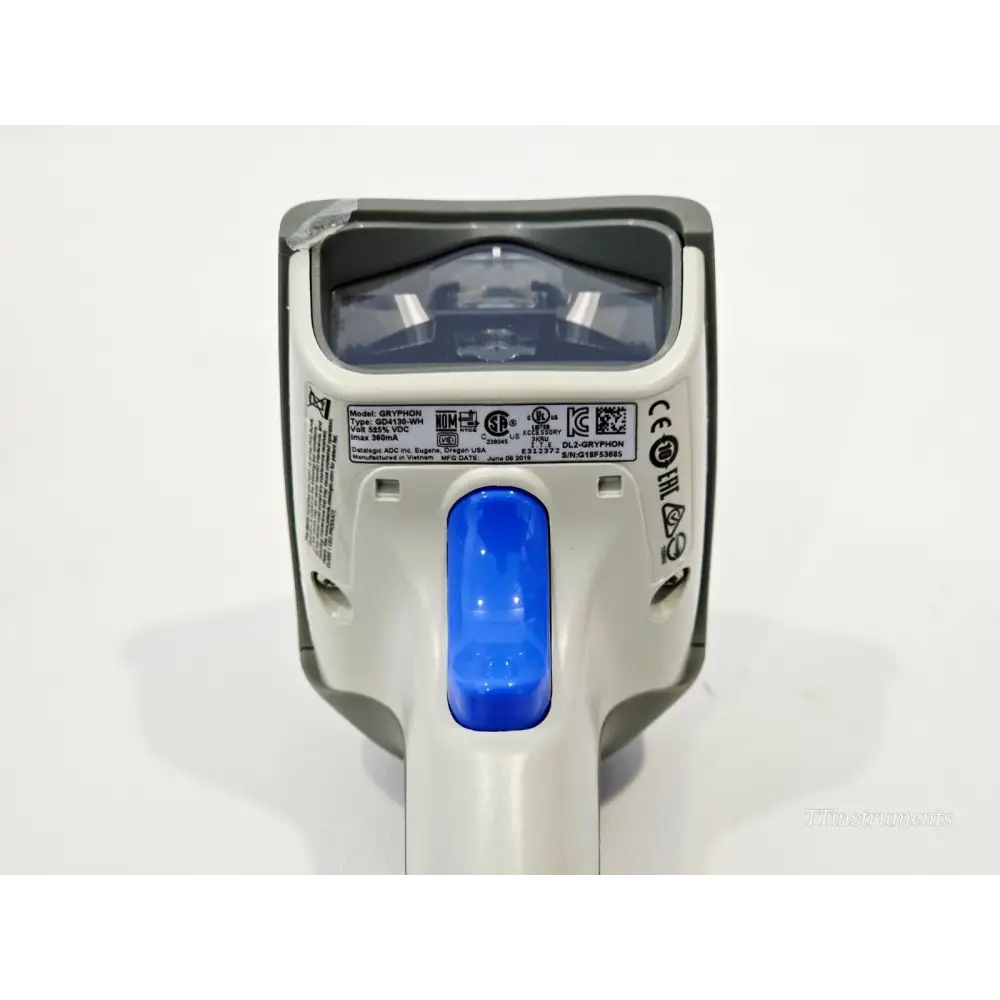

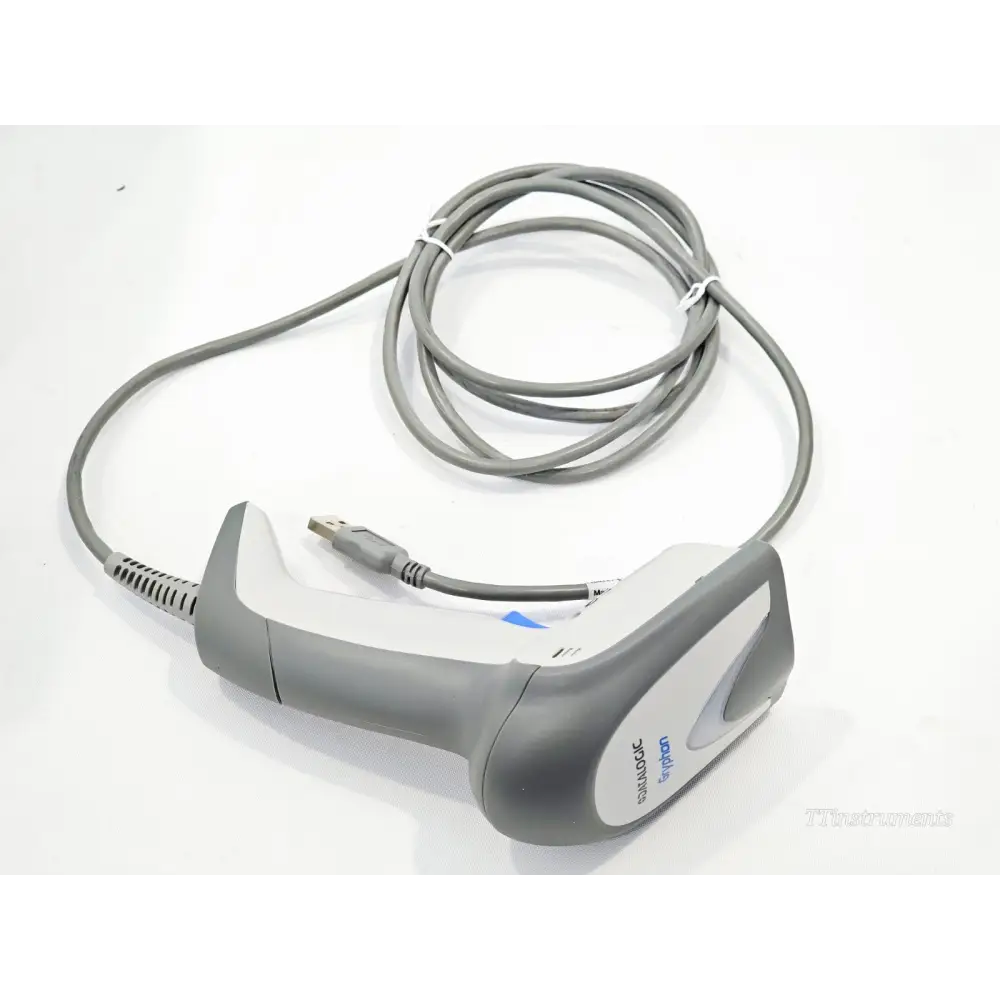

• Datalogic Gryphon GD4130-WH Barcode Reader

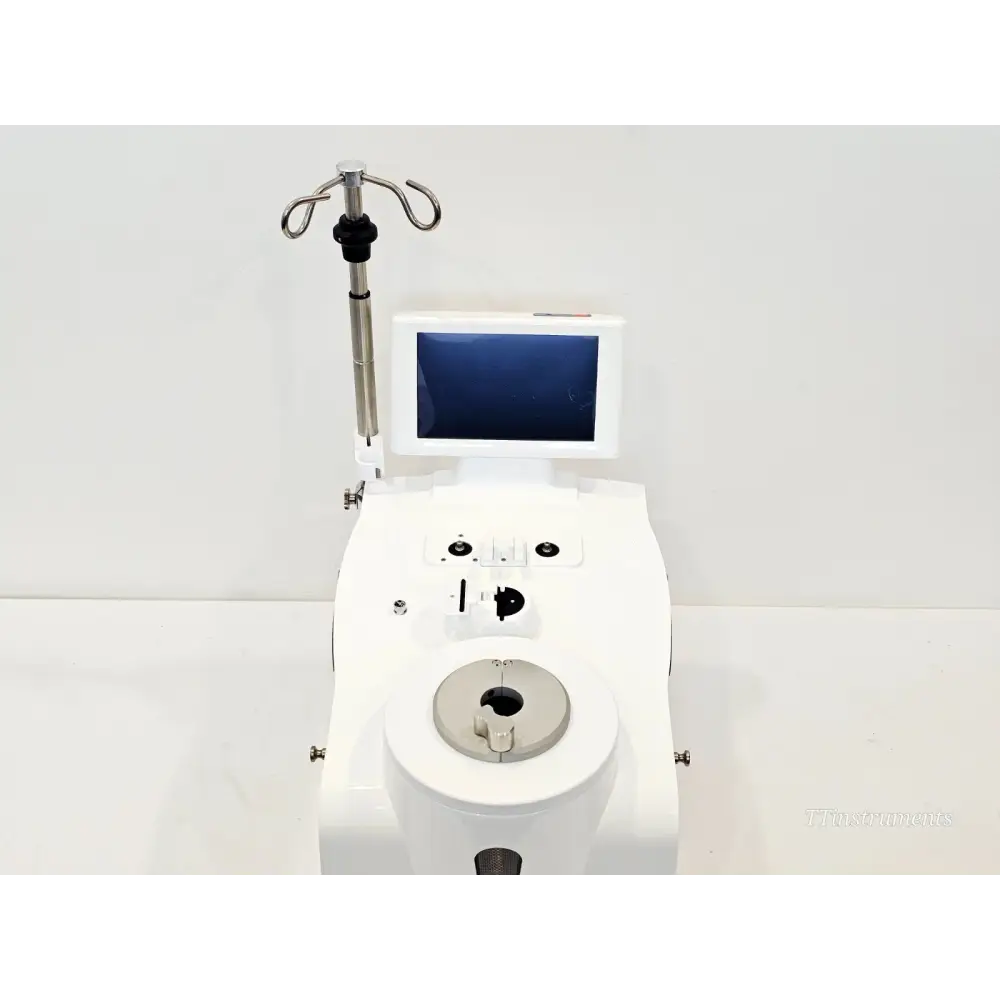

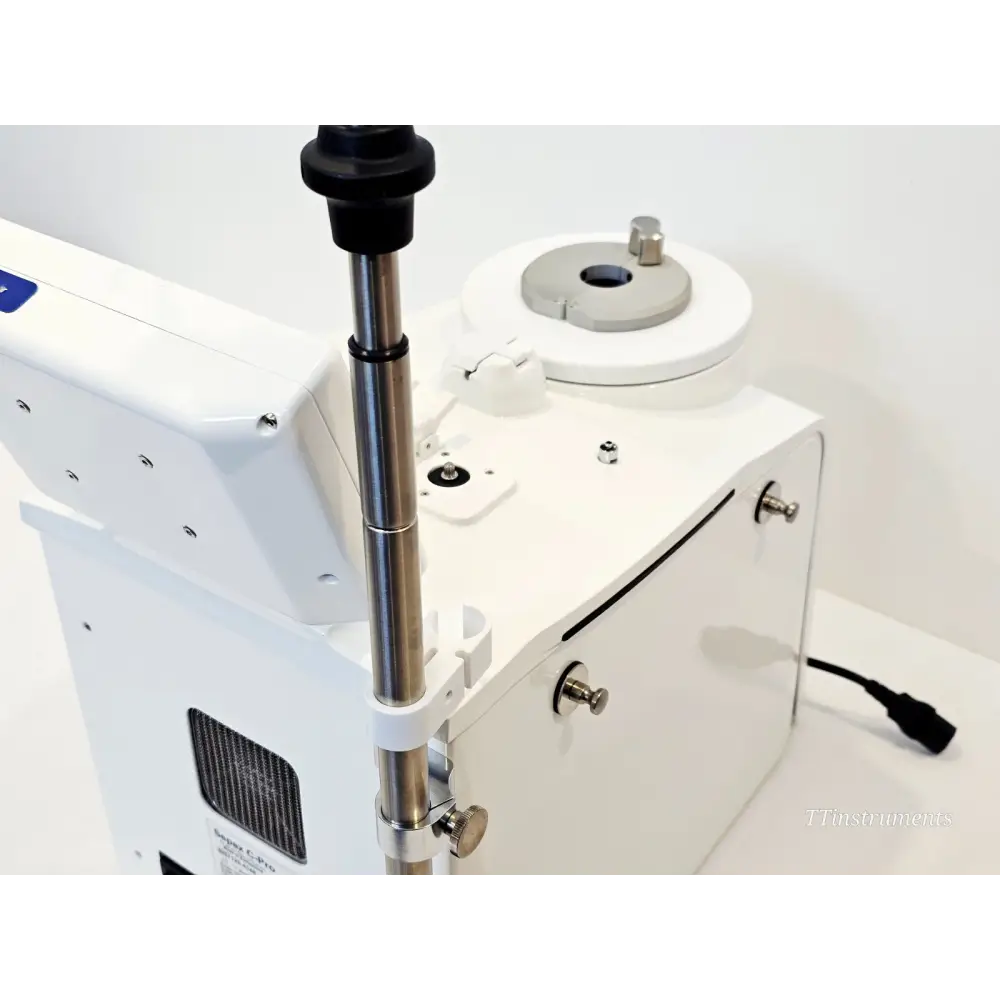

• IV pole / fluid bag hanger stand

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Cytiva (formerly GE Healthcare) Sepax C-Pro Cell Processing System is an automated, functionally closed instrument designed to support GMP-compliant cell therapy manufacturing. Comprised of the instrument, Sepax C-Pro protocol software, and single-use kits, the system allows operators to combine multiple processing steps in a versatile and flexible manner. Supported operations include enrichment, magnetic bead incubation, spinoculation, concentration, washing, dilution, and splitting — covering both upstream cell selection and downstream harvest and formulation steps.

The Sepax C-Pro utilises a rotating separation chamber driven by an electric centrifugation motor and pneumatic piston drive. Optical line sensing and pressure monitoring ensure precise process control throughout each run. The instrument runs Windows XP Embedded with a proprietary GMAP application and is compatible exclusively with Sepax C-Pro protocol software.

Data management is simplified through barcode traceability, PDF report generation, and internal storage for up to 32 log files, 50 PAT files, and 50 report files. The system integrates with Cytiva's Chronicle manufacturing automation software for remote monitoring, alarm transmission, and eSOP incorporation.

Key Features:
- Automated and functionally closed system supporting GMP compliance
- Multipurpose platform for diverse cell therapy applications
- Compact, bench-top footprint with intuitive colour touchscreen GUI
- Chronicle software integration for connected instrument monitoring
- Barcode reader for full traceability and data management

Technical Specifications:
Core Technology: Electric centrifugation motor and pneumatic circuitry for piston drive
Pressure Monitoring / Sensor: Optical line sensor

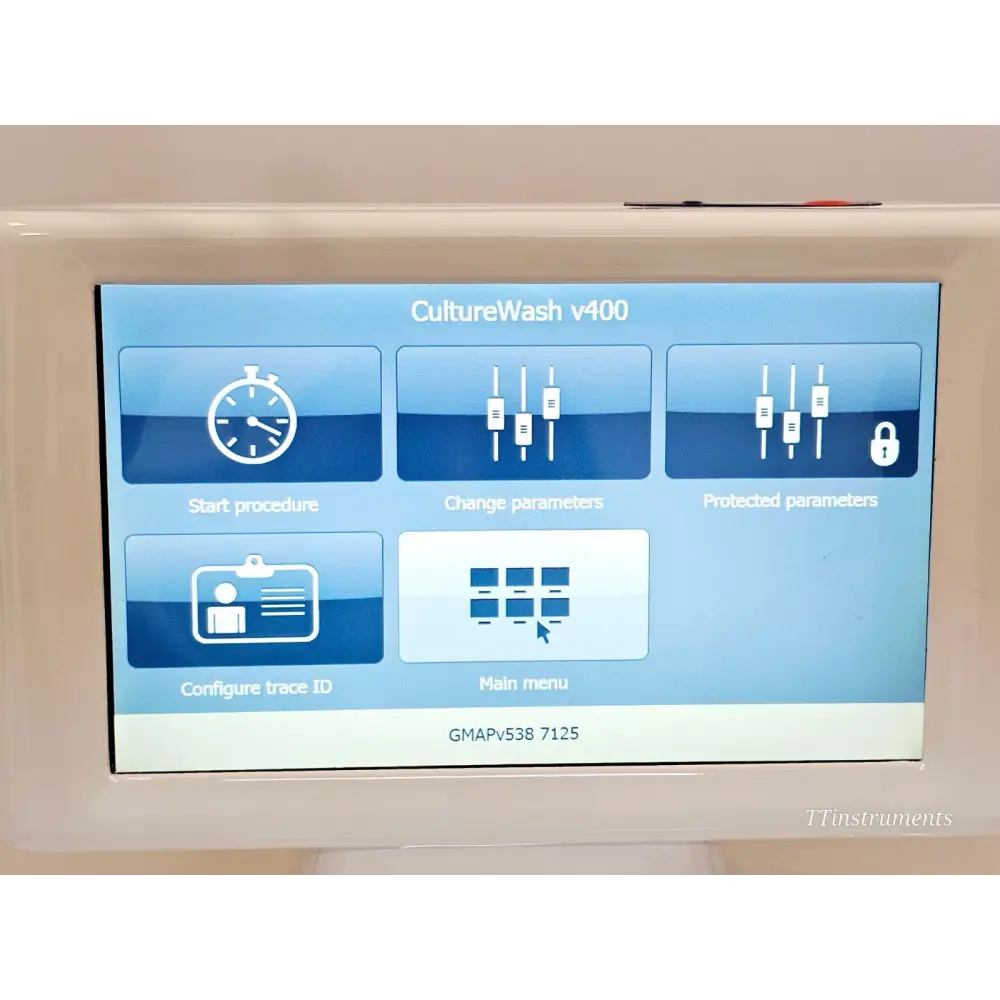

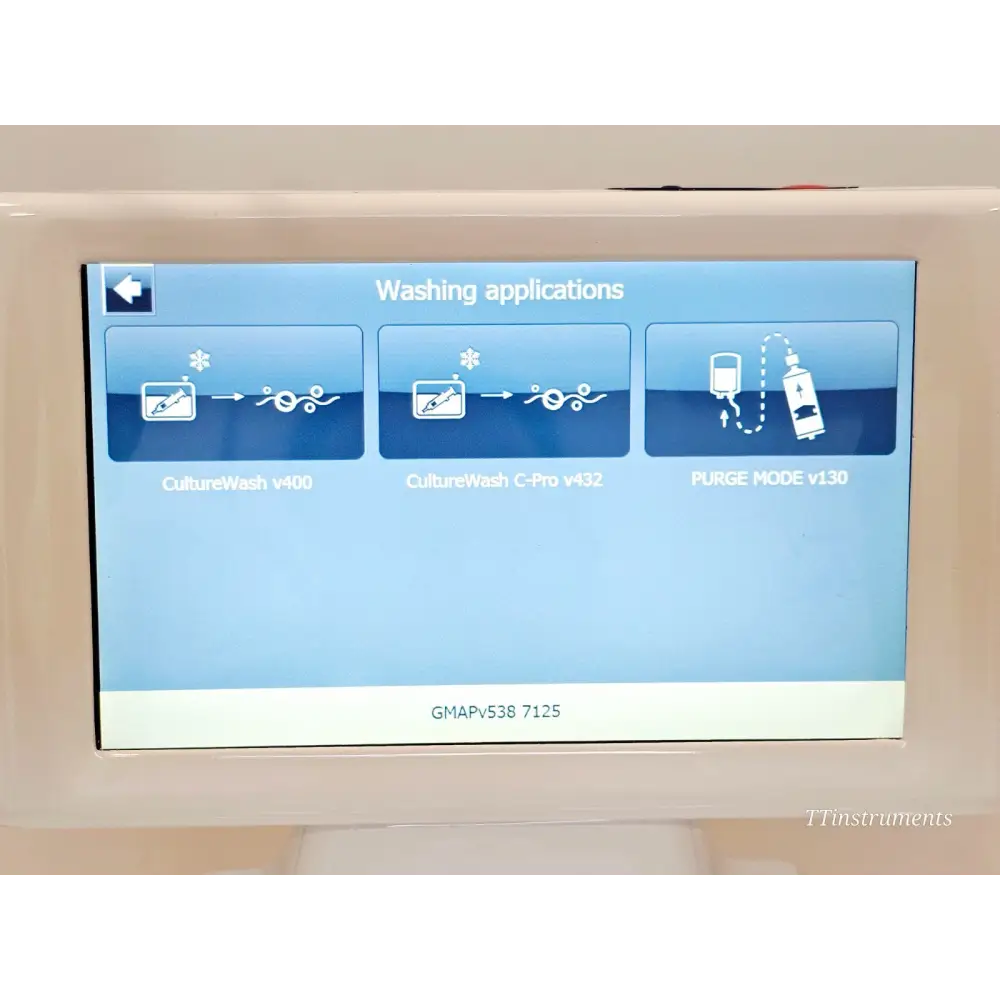

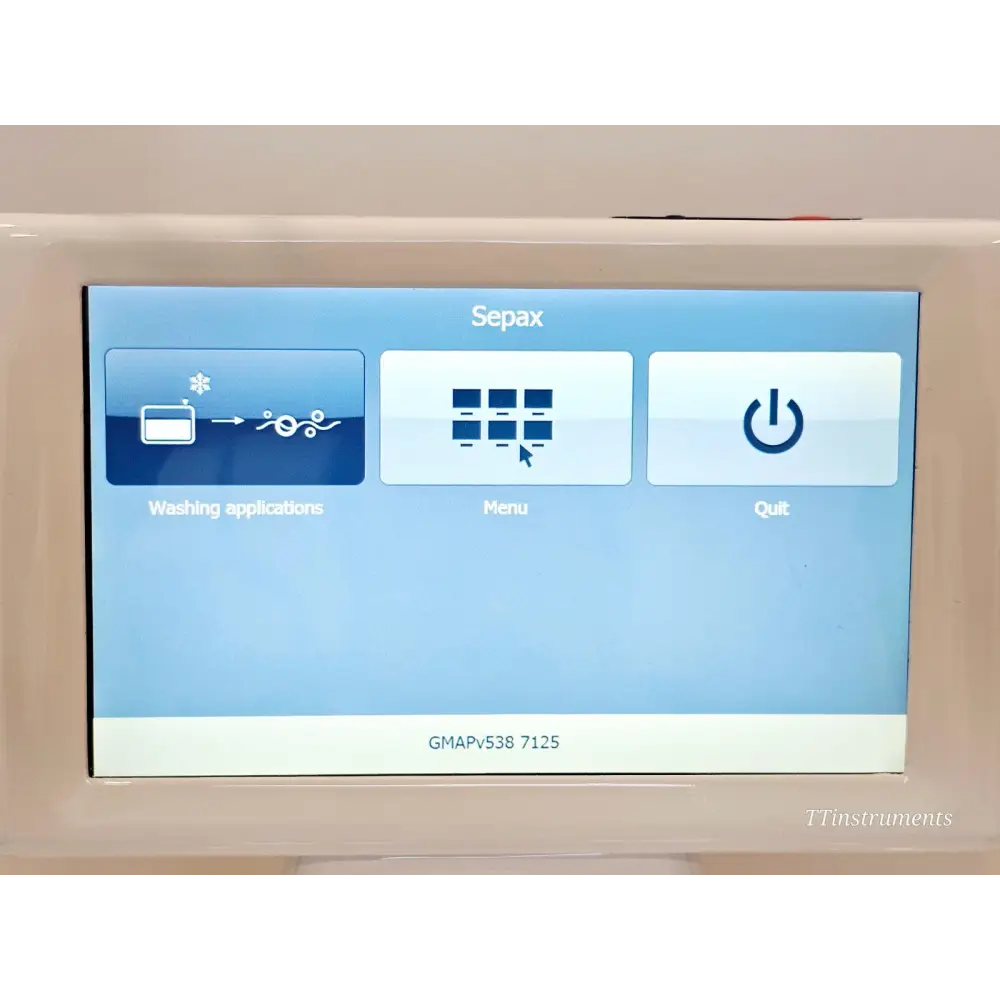

User Interface: Colour touchscreen with intuitive graphical user interface (GUI)
Software: Sepax C-Pro protocol software only; Windows XP Embedded and proprietary GMAP application

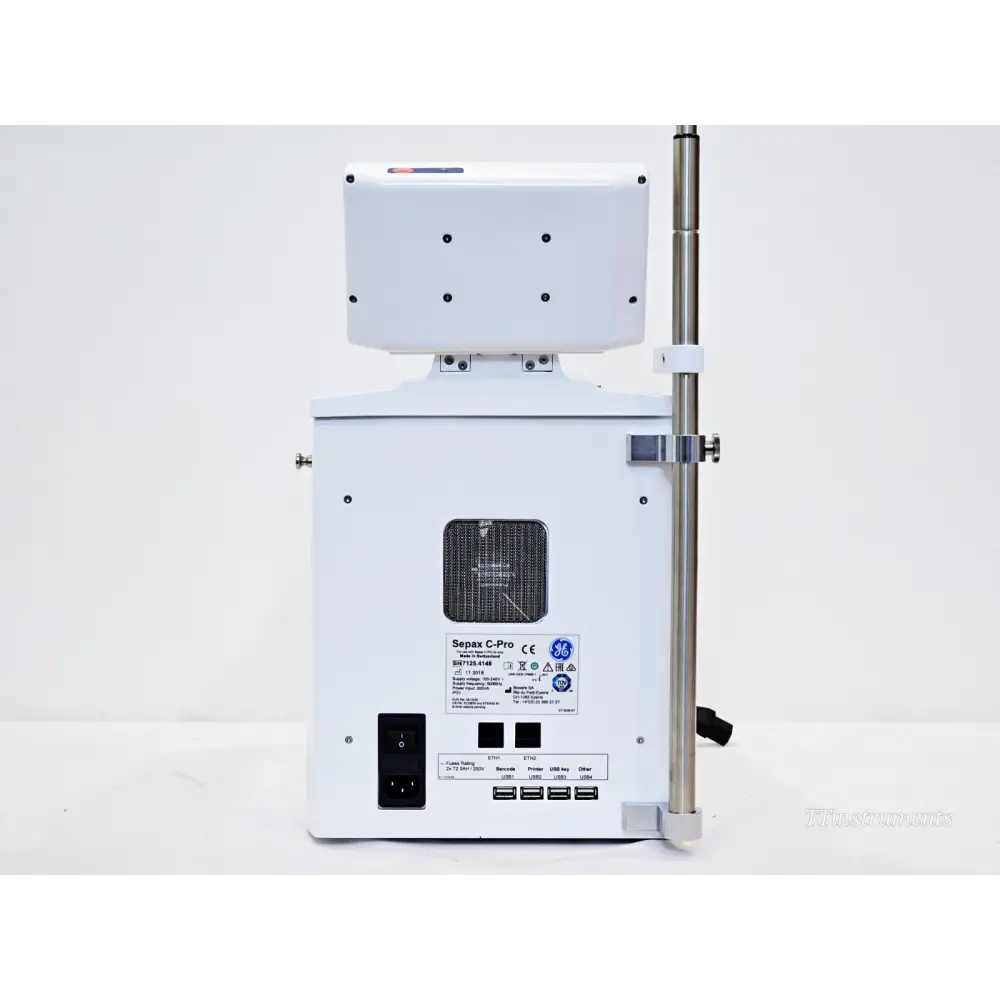

Connectivity: Four USB ports and two Ethernet ports
Power: 1000 W, 100–240 VAC, 50/60 Hz
Dimensions (W × L × H): 27 cm × 40 cm × 46 cm (10.6 × 14.7 × 18.1 in)
Weight: 16.3 kg (35.9 lb)
Operating Temperature: 0°C to 50°C
Operating Humidity: 20% to 75%, non-condensing
Operating Altitude: Up to 2000 m (80 kPa)
Storage / Transport Temperature: 7°C to 27°C
Storage / Transport Humidity: 30% to 75%, non-condensing
Traceability: Barcode reader; PDF reports and procedural graphs; internal storage of 32 log files, 50 PAT files, 50 report files
Compliance Standards: IEC-61010, IEC-61326, IEC-62304
