EXFO FTB-1 with FTB-730-234B-EI SM OTDR 1310/1550/1625 nm FTB-730 FC-PC

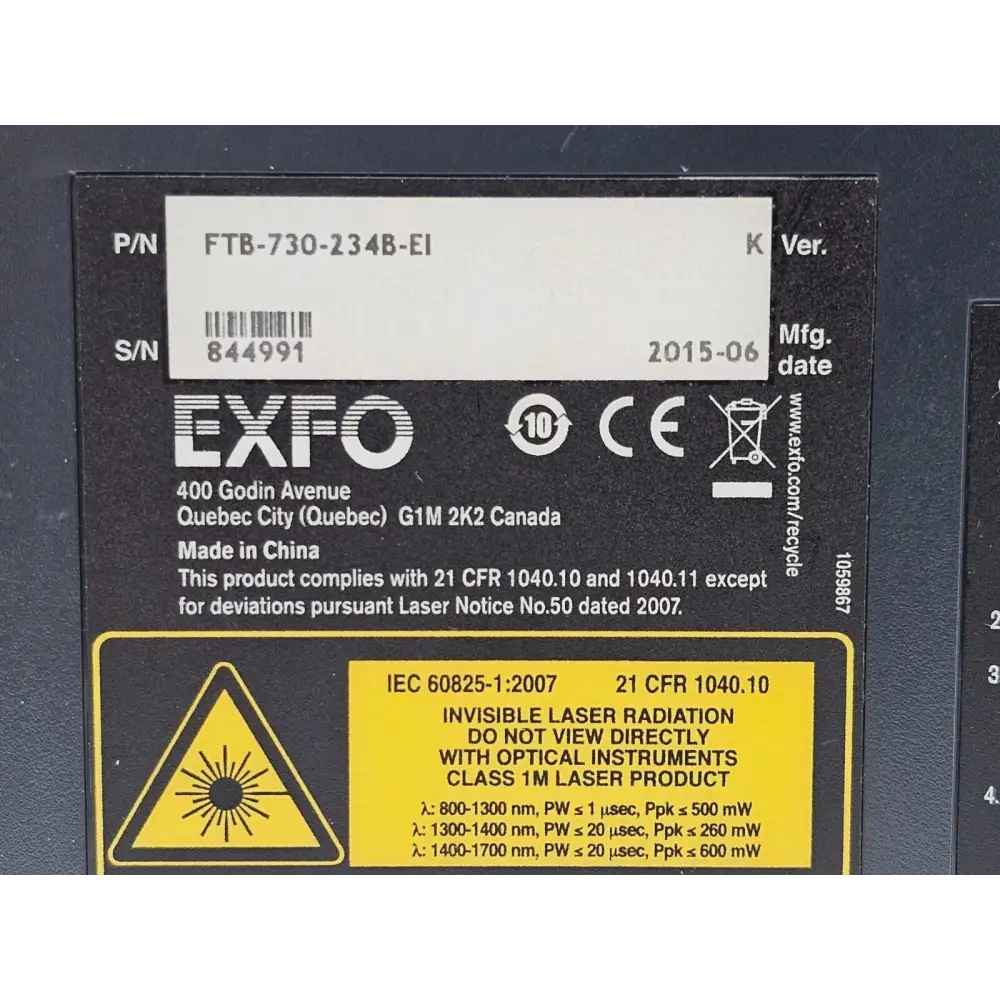

Model: FTB-1 with FTB-730-234B-EI
Condition: Used
In stock: 0
SKU: 2878 4C04
- Fiber Optics
- OTDR
Choose options
Condition: Used

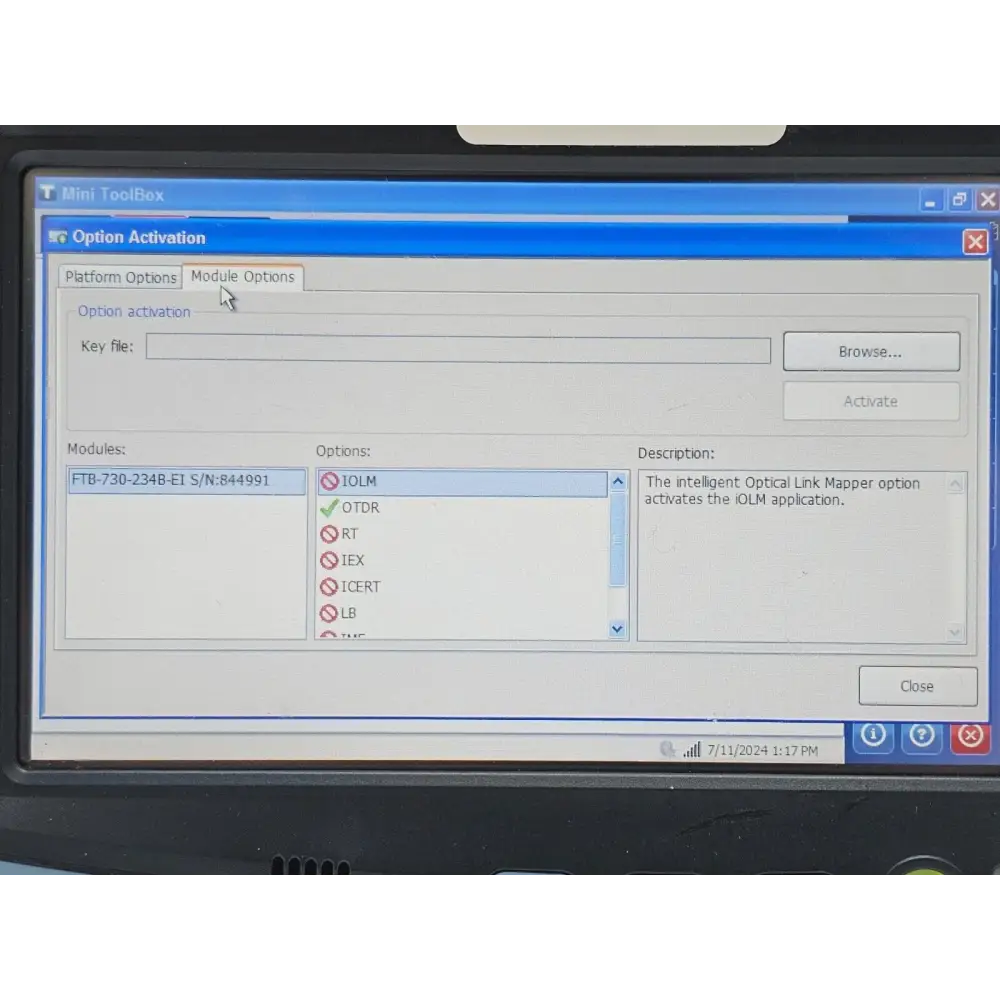

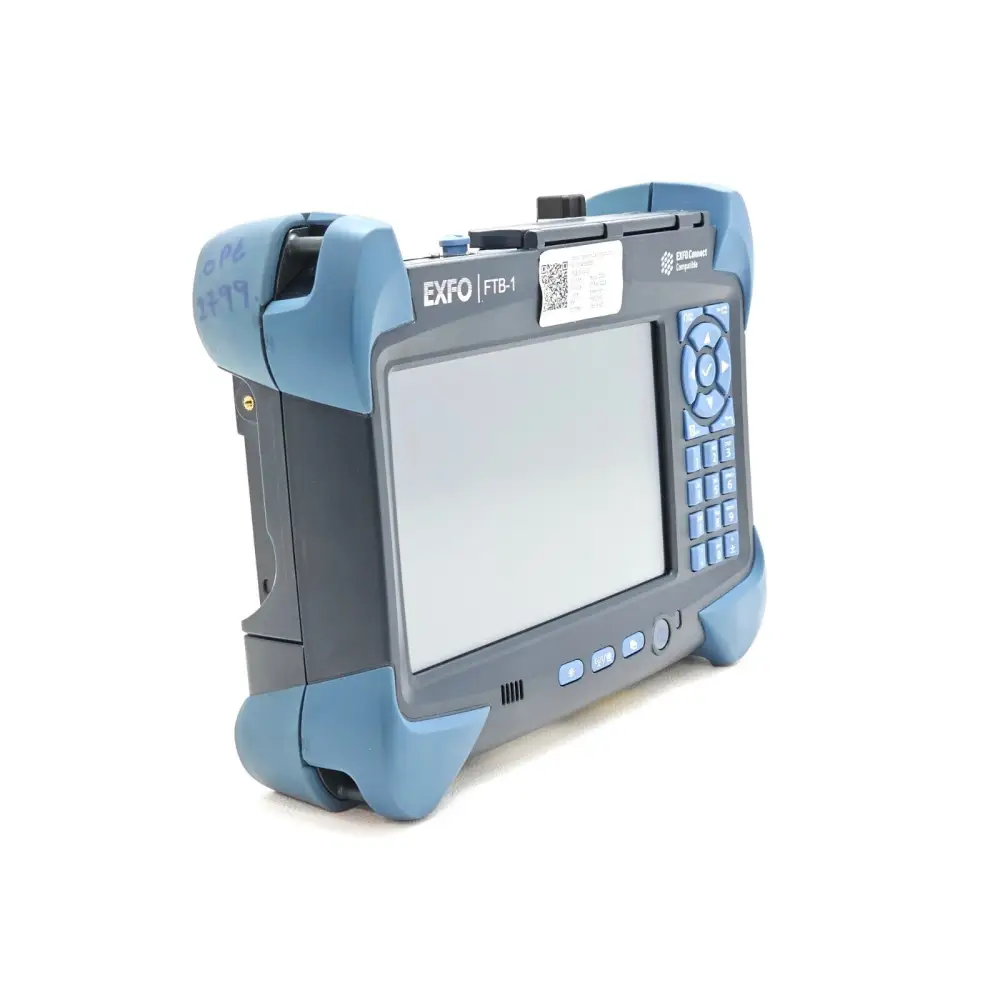

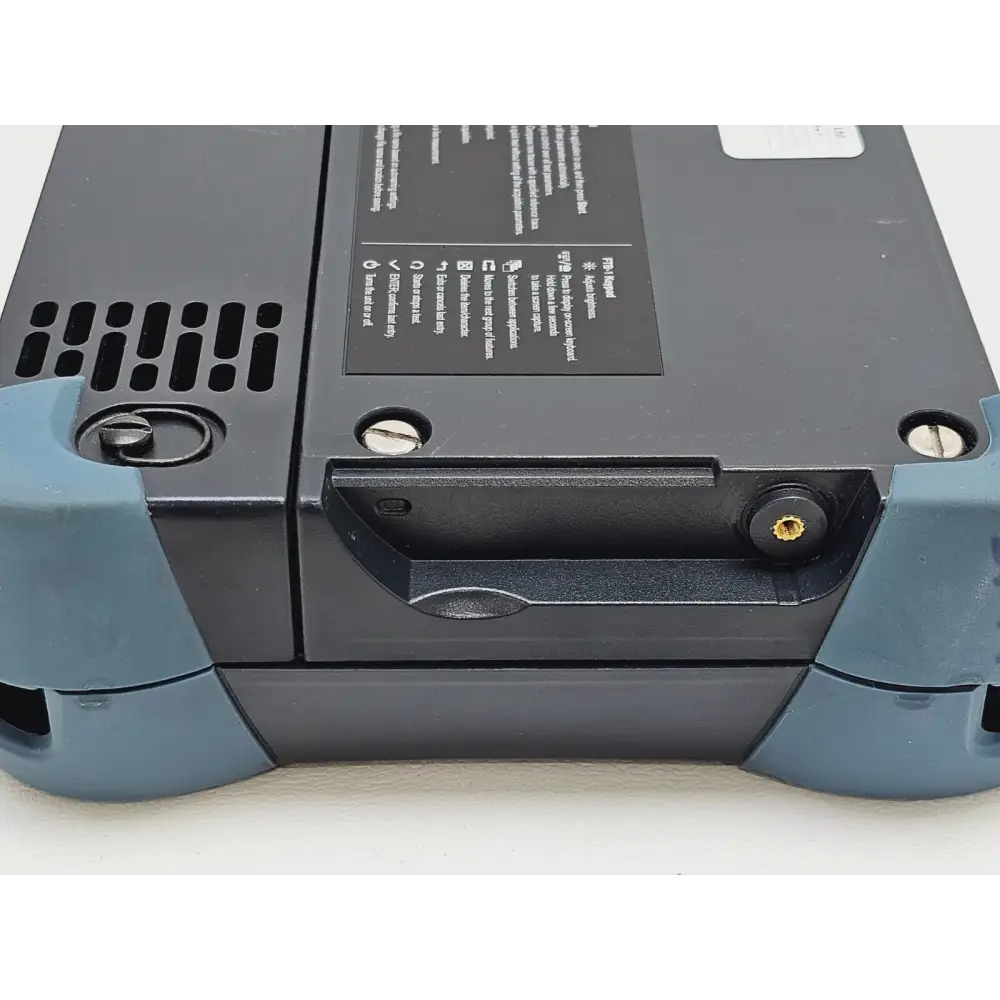

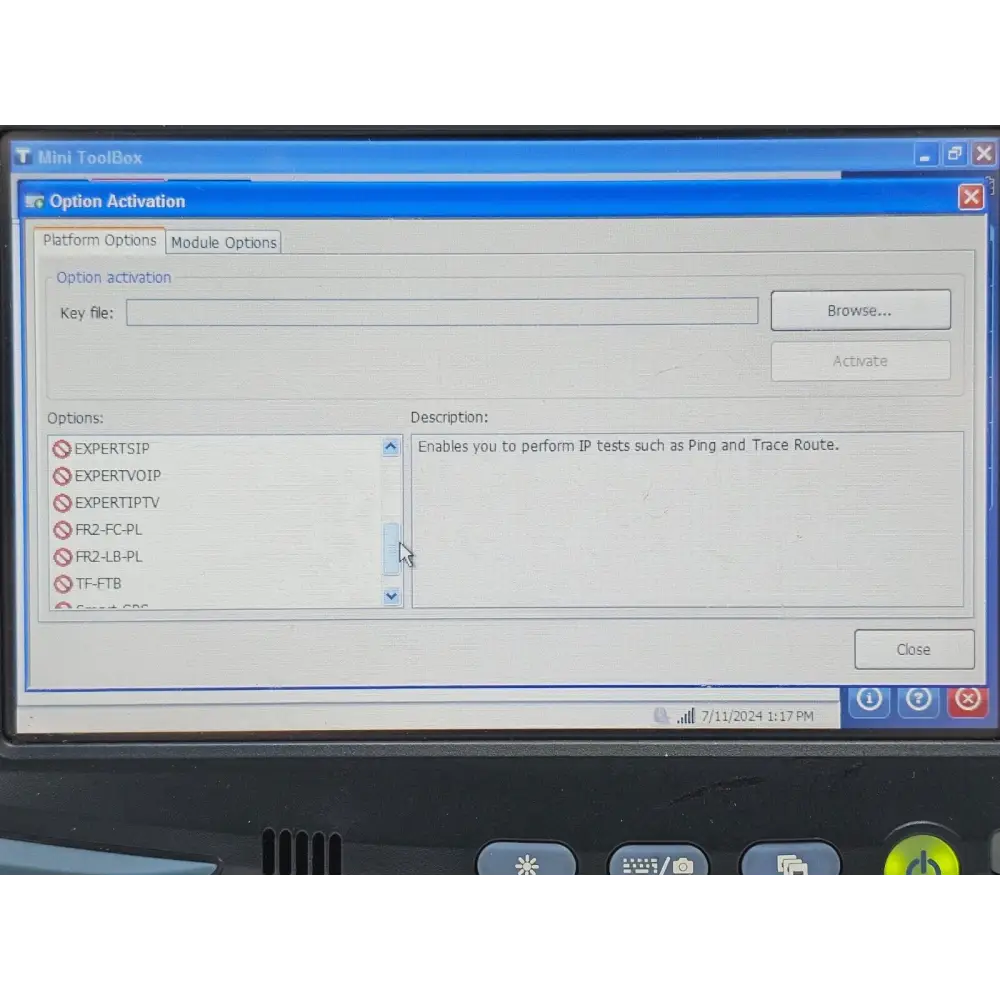

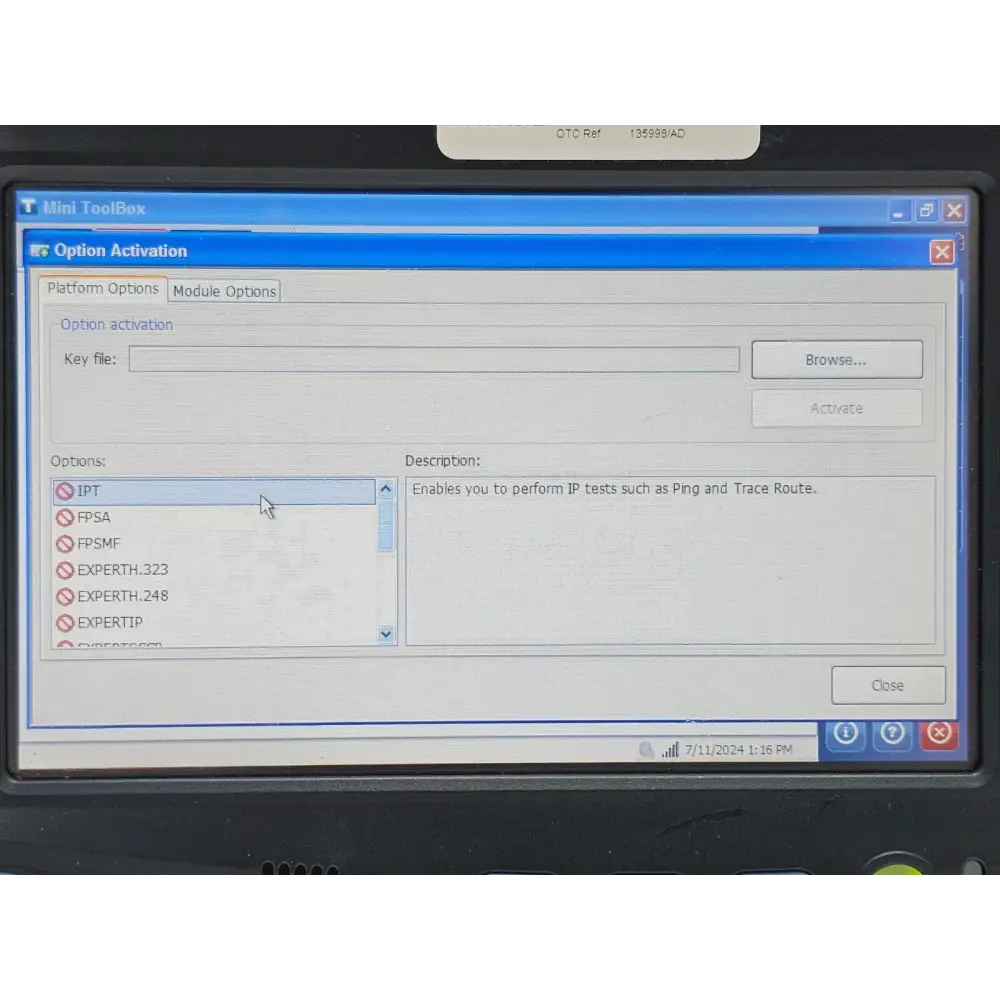

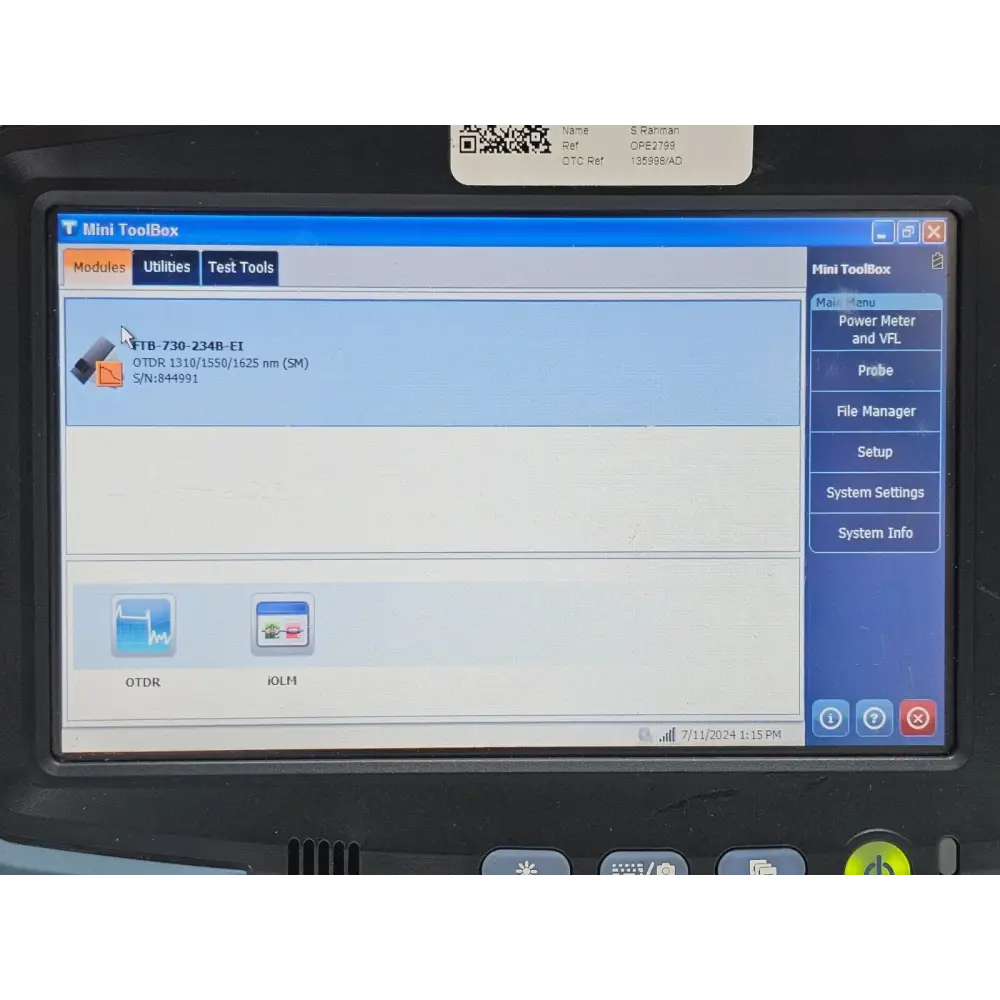

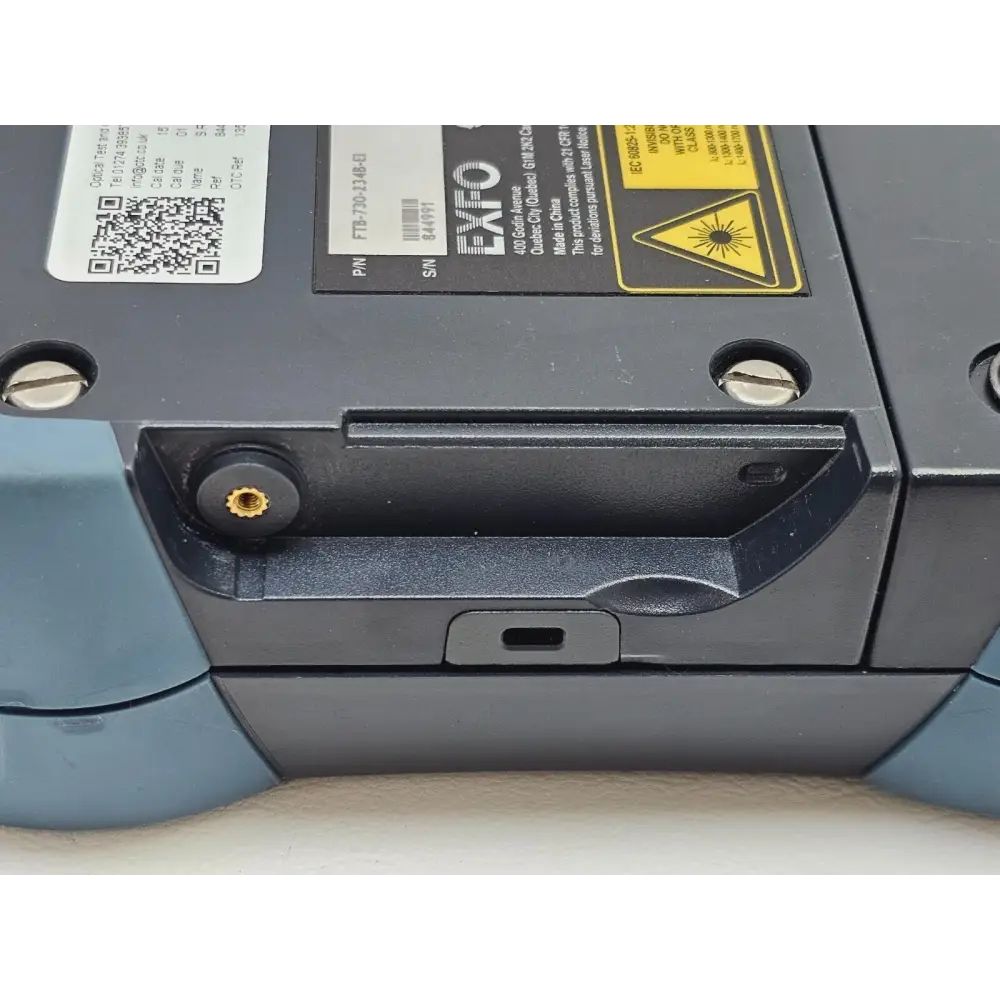

This EXFO FTB-1 mainframe with FTB-730-234B-EI OTDR module was manufactured in 2015 and is in good working condition. Calibration expired March 2023. The unit operates across 1310/1550/1625 nm with FC/PC connector interface. Note: resting legs are missing; screen is in very good condition. OTDR software is active; iOLM is NOT licensed.
Included with this unit:
• FTB-1 mainframe with FTB-730-234B-EI OTDR module
• FC/PC connector interface
• Power adapter
• Stylus
• Carry bag

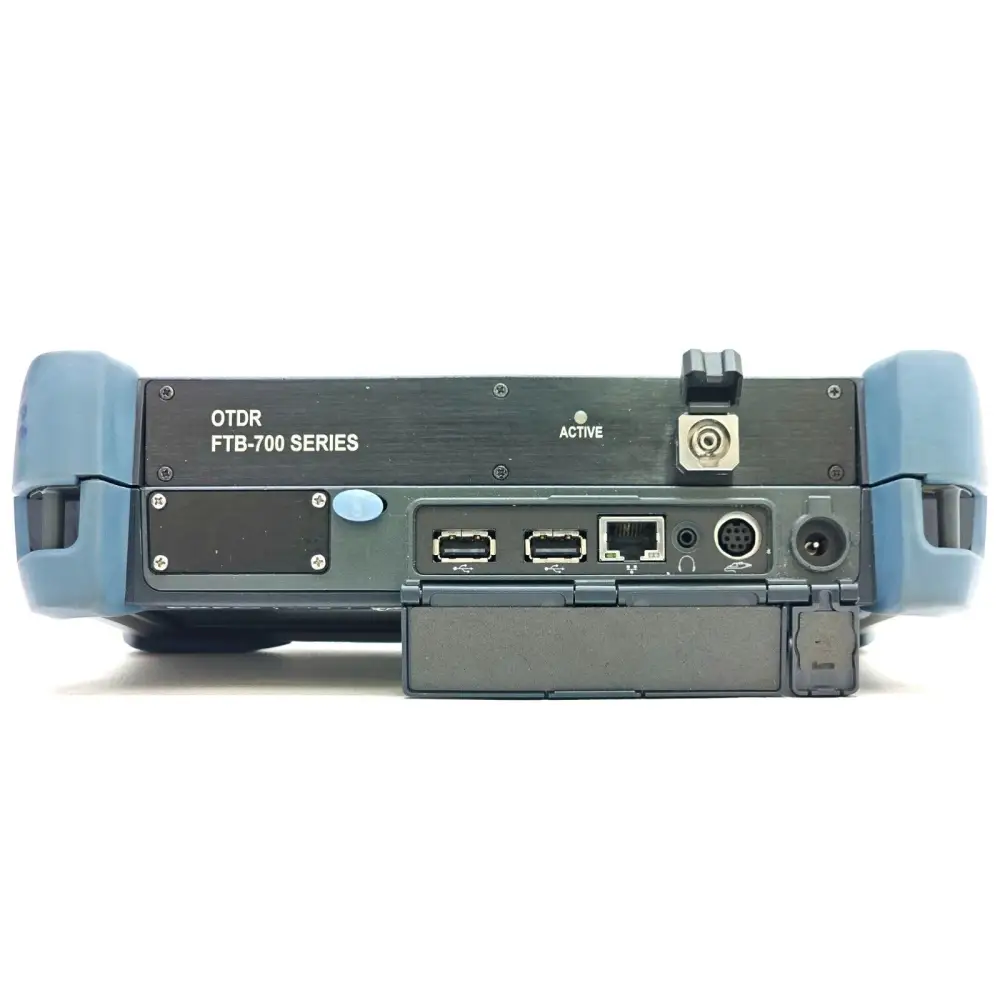

The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing of optical networks. The rugged mainframe accepts a range of hot-swappable test modules and features a multitouch widescreen colour TFT display, a Windows operating system, and comprehensive connectivity including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet.
The FTB-730 is a single-mode OTDR module for the FTB-1 platform, designed for the installation, commissioning, and maintenance of optical fibre networks. The tri-band FTB-730-234B-EI variant supports 1310, 1550, and 1625 nm wavelengths, enabling standard fibre characterisation alongside live fibre testing at 1625 nm without interrupting active traffic.
Typical applications include fibre network installation and acceptance testing, fault location and troubleshooting, and maintenance of outside plant and premises cabling.
Key features:

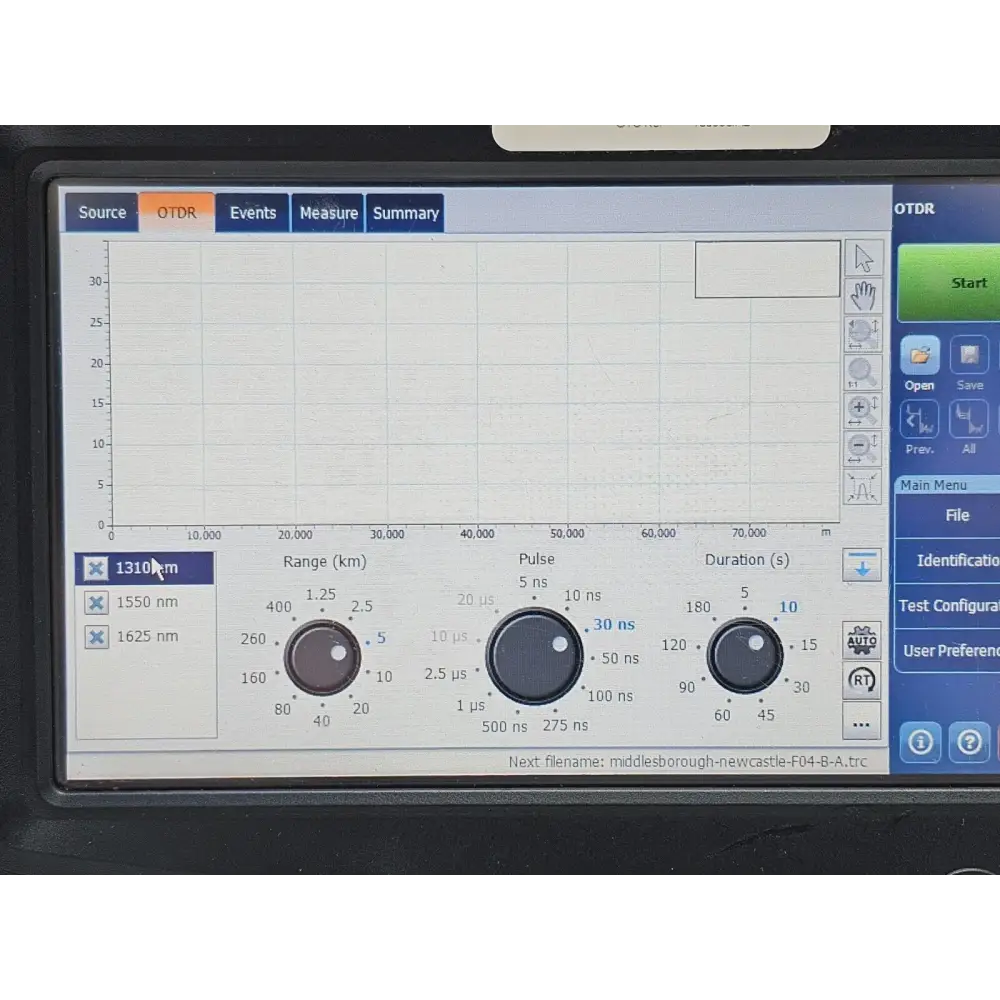

• Three test wavelengths: 1310 nm, 1550 nm, and 1625 nm
• High dynamic range for extended reach measurements
• FC/PC optical interface as standard
• Compatible with iOLM (Intelligent Optical Link Mapper) software option for automated link analysis
• Hot-swappable module design within the FTB-1 modular platform
• Rugged field-ready construction
Specifications (FTB-730-234B-EI):
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 / 37 / 39 dB
Optical Connector: FC/PC
Fibre Type: Single-mode
Mainframe: EXFO FTB-1
Operating System: Windows
Display: Multitouch colour TFT widescreen
Connectivity: Wi-Fi, Bluetooth, USB, Gigabit Ethernet
EXFO FTB-730 OTDR Module Datasheet (English): Download PDF
EXFO FTB-1 Mainframe Datasheet (English): Download PDF
Product Overview
Condition: Used
This EXFO FTB-1 mainframe with FTB-730-234B-EI OTDR module was manufactured in 2015 and is in good working condition. Calibration expired March 2023. The unit operates across 1310/1550/1625 nm with FC/PC connector interface. Note: resting legs are missing; screen is in very good condition. OTDR software is active; iOLM is NOT licensed.
Included with this unit:
• FTB-1 mainframe with FTB-730-234B-EI OTDR module
• FC/PC connector interface
• Power adapter
• Stylus
• Carry bag
Manufacturer's Description
The EXFO FTB-1 is a portable modular test platform designed for fast and powerful field testing of optical networks. The rugged mainframe accepts a range of hot-swappable test modules and features a multitouch widescreen colour TFT display, a Windows operating system, and comprehensive connectivity including Wi-Fi, Bluetooth, USB, and Gigabit Ethernet.
The FTB-730 is a single-mode OTDR module for the FTB-1 platform, designed for the installation, commissioning, and maintenance of optical fibre networks. The tri-band FTB-730-234B-EI variant supports 1310, 1550, and 1625 nm wavelengths, enabling standard fibre characterisation alongside live fibre testing at 1625 nm without interrupting active traffic.
Typical applications include fibre network installation and acceptance testing, fault location and troubleshooting, and maintenance of outside plant and premises cabling.
Key features:
• Three test wavelengths: 1310 nm, 1550 nm, and 1625 nm
• High dynamic range for extended reach measurements
• FC/PC optical interface as standard
• Compatible with iOLM (Intelligent Optical Link Mapper) software option for automated link analysis
• Hot-swappable module design within the FTB-1 modular platform
• Rugged field-ready construction
Specifications (FTB-730-234B-EI):
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 / 37 / 39 dB
Optical Connector: FC/PC
Fibre Type: Single-mode
Mainframe: EXFO FTB-1
Operating System: Windows
Display: Multitouch colour TFT widescreen
Connectivity: Wi-Fi, Bluetooth, USB, Gigabit Ethernet
Resources
EXFO FTB-730 OTDR Module Datasheet (English): Download PDF
EXFO FTB-1 Mainframe Datasheet (English): Download PDF
