Condition: Used

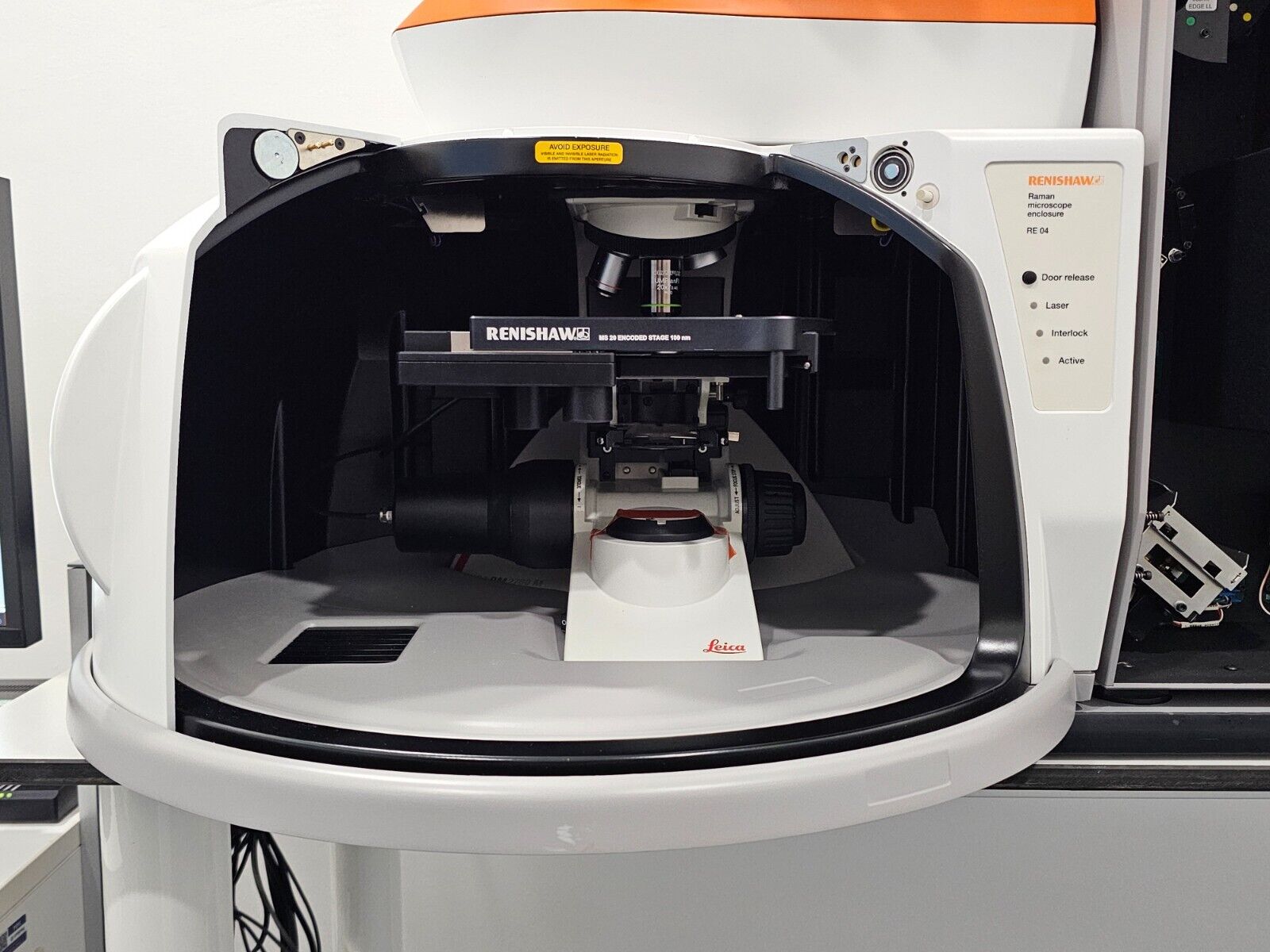

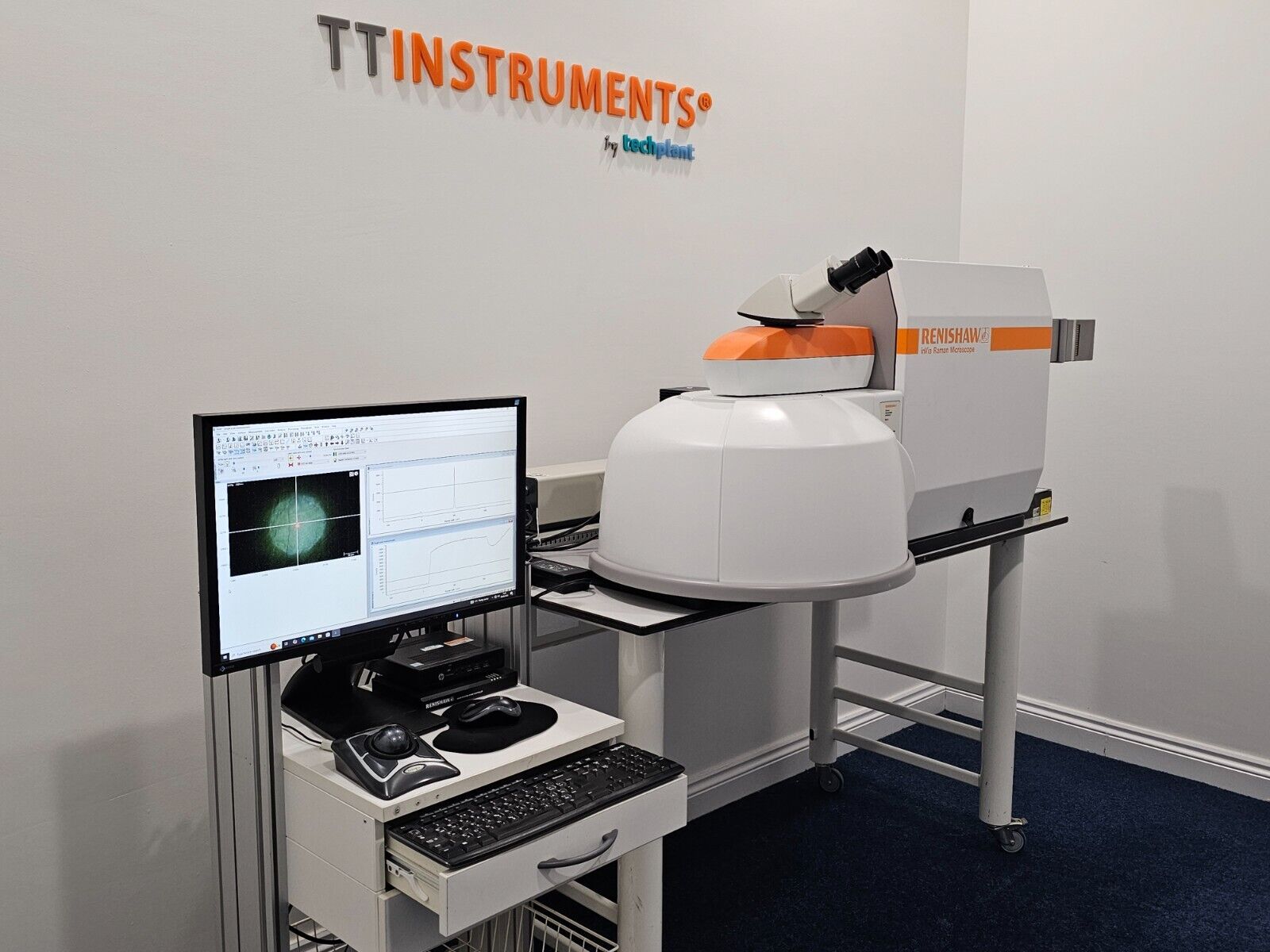

Renishaw inVia Confocal Raman Microscope

Ex-Pfizer | Fully Serviced & Calibrated | Upgraded PC | Licensed Software | Ready to Ship Worldwide

We are offering a Renishaw inVia Confocal Raman Microscope, a state-of-the-art Raman spectroscopy system renowned for its high precision, advanced capabilities, and reliability in materials characterization, chemical analysis, and molecular identification.

This unit was originally acquired by Pfizer, where it was meticulously maintained in a professional laboratory setting. In January 2025, Renishaw performed a full factory service and calibration, and the system includes the manufacturer’s latest service documentation.

This is the current model, identical to what Renishaw sells today at a cost of approximately £200,000, making this a high-value opportunity for research institutions and industrial users looking for a fully equipped, top-tier system at a competitive price.

Key Specifications

Spectral Resolution: 0.3 cm⁻¹ (FWHM)

Lasers Supported: From 229 nm to 1064 nm

Wavelength Range: 200 nm – 2200 nm

Stability: < ±0.01 cm-1

Diffraction Gratings: 600 and 1200 lines/mm for flexible spectral resolution

Included in the sale:

Lasers:

Renishaw HPNIR 785 nm Semiconductor Laser – Rated 300mW, Actual output ~270 mW (Optimal) MFD 2004

Renishaw HeNe 633 nm Laser – Rated 20 mW, actual output 17 mW (Optimal) MFD 2000

Leica Microscope MFD 2014 (DM 2700M Ren RL/TL) with Objectives: N Plan 5× 0.12, N Plan 20x/0.40 and UMPlanFl 20×/0.46

Motorized Encoded Stage: Renishaw MSC20 with precise X, Y, and Z movement controlled via trackball

PC & Software: Upgraded system with Renishaw WiRE™ software, licensed for use with up to 4 systems

Manufacture Year: 2015 – This is still the current model

Condition: Fully serviced, calibrated, and includes the latest Renishaw service report (Jan 2025)

Features & Capabilities

Confocal Raman Spectroscopy – Provides high-resolution depth profiling and chemical mapping

Multi-Laser Excitation – Seamless switching between 785 nm and 633 nm for optimal Raman signal detection

Automated System Adjustments – Laser, filter, and grating changes without manual intervention

High Optical Efficiency – Designed to maximize weak Raman signals while minimizing noise

Precision-Encoded Sample Stage – 100 nm step size, ensuring repeatable and highly accurate sample positioning

User-Friendly Sample Handling – Supports solids, liquids, and thin films with no special preparation required

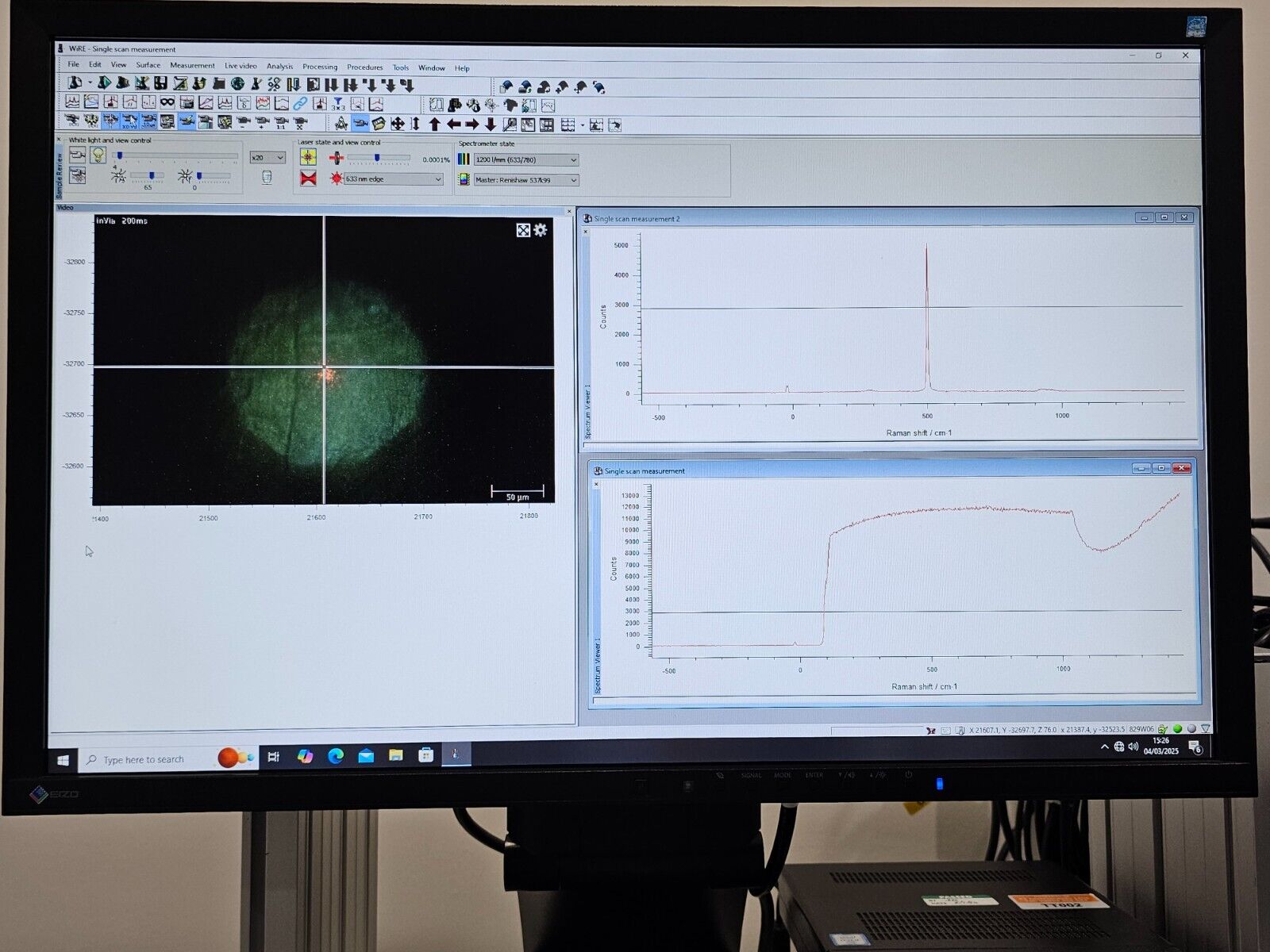

Industry-Leading WiRE™ Software – Advanced data acquisition, spectral processing, and imaging tools

Applications

This system is used globally in high-end scientific research, industrial R&D, and advanced material analysis, including:

Materials Science: Nanotechnology, semiconductors, thin films, and composites

Pharmaceutical Research: Drug formulation, polymorphism studies, and QA/QC

Geology & Mineralogy: Mineral identification, structural analysis

Life Sciences & Biomedical Research: Tissue and biomolecule characterization

Forensic Science: Trace material identification and authentication

Included Accessories

All pictured accessories are included, ensuring a complete, ready-to-use system.

Shipping & Inspection

Worldwide shipping available – The instrument will be shipped securely on a double pallet.

The system sits on a platform, which rests on a wheeled table for easy installation.

Collection & Inspection available – Buyers are welcome to arrange a viewing before purchase.

Important Note on Shipping & Alignment

Due to the intricate nature of the instrument, there is a possibility that some minor adjustments may be needed after shipping to ensure optimal alignment and accuracy. Although every precaution will be taken in packing and transport, delicate optical components can shift slightly.

To ensure accurate Raman measurements, the buyer may need to:

Have an experienced technician check the alignment and recalibrate the system

Contact Renishaw for a service visit, which typically costs around £2,000

This is standard for high-precision optical instruments and should be factored into your setup process.

Pricing & Contact Information

Priced competitively against the £200,000 cost at Renishaw

For inquiries, viewing arrangements, or more details:
Please contact us via message or email.
Location: Blackburn, UK
Worldwide shipping available

This is a rare opportunity to acquire a Renishaw inVia Confocal Raman Microscope in outstanding condition at a fraction of the new cost. Contact us today.

inVia Microscopes for Reliable, High-quality Results

The world’s best selling high performance Raman microscope

Key Benefits

High Performance
The inVia Raman microscope delivers outstanding performance, providing you with the best data in the shortest time.

Sensitive
See even the weakest Raman scatterers and get spectra from thin films and monolayers.

Powerful
Use the inVia Raman microscope for both Raman and photoluminescence measurements to obtaininformation on the electronic and vibrational structure of your materials, or combine with other analytical techniques for a powerful, comprehensive solution.

Automated
The inVia Raman microscope’s full automation handles the changing of laser wavelengths, filters and gratings for you. It also maintains focus, system alignment and calibration, so you can concentrate on getting results, not having to adjust your Raman system.

Flexible
The inVia Raman microscope is completely configurable, incredibly flexible and totally upgradable. You can analyse the widest range ofsamples, under different experimental conditions now and in the future.

Repeatable results
Rely on the inVia Raman microscope to produce results you can trust. With its outstanding performance you can be confident that it will deliver repeatable results time and time again – no matter how challenging the experiment.

Easy to use
The inVia Raman microscope’s automation and optional sample enclosure (which eliminates ambient light) maximise operational efficiency, even in busy laboratories
with multiple users.

A full range of imaging technologies
The inVia Raman microscope has a comprehensive suite of mapping and imaging techniques. Use
these to generate detailed, information-rich Raman images, of both 2D areas and
3D volumes.

Analyse irregular samples
The inVia Qontor system’s LiveTrack™ automated focus tracking technology enables the analysis of samples with uneven, curved or rough surfaces and
maintains focus in both white light video and Raman modes.

Data Sheet - Renishaw inVia Confocal Raman Microscope

Data Sheet - HPNIR Laser

Data Sheet - HeNe Laser
