Condition: Seller refurbished

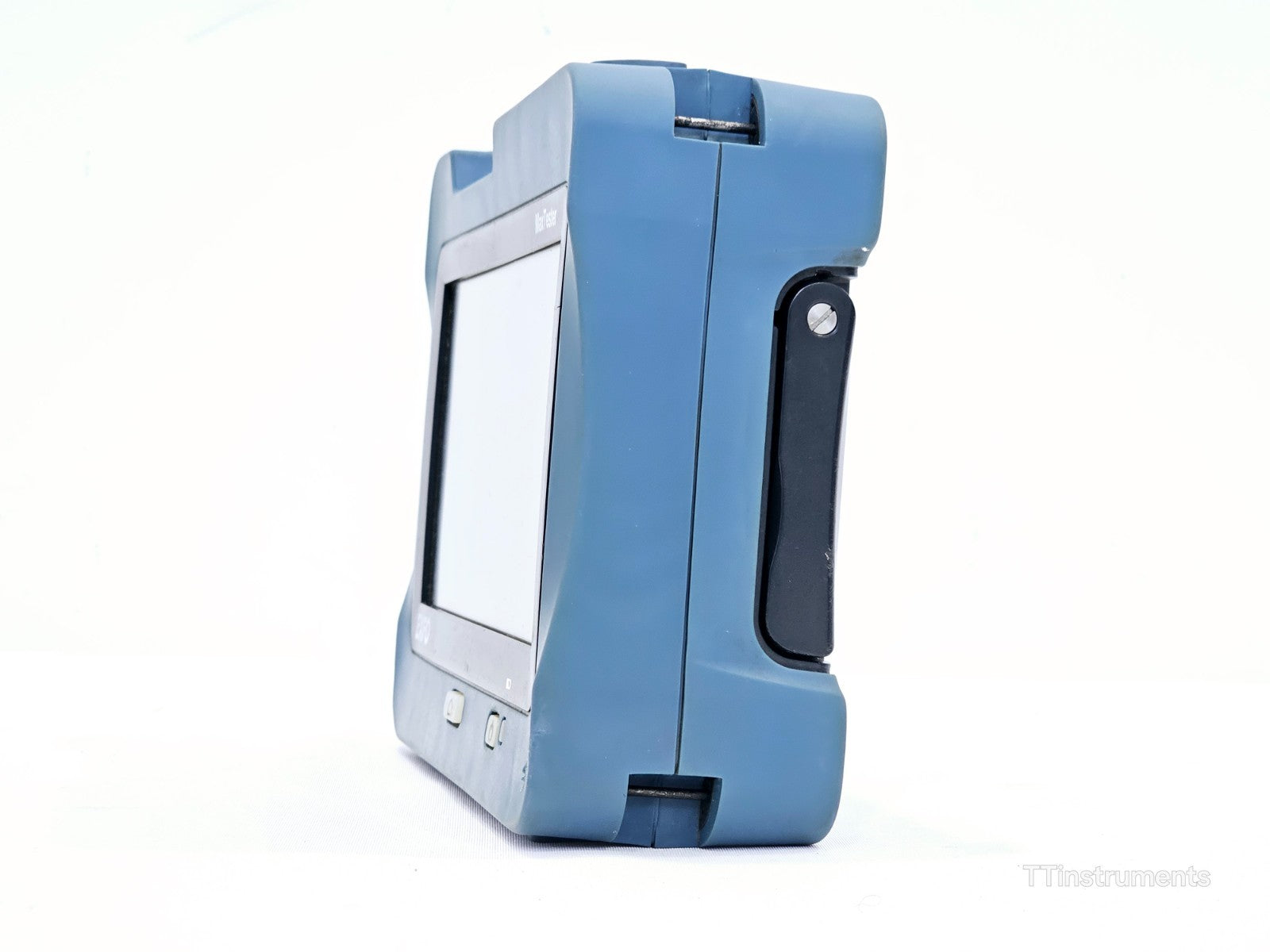

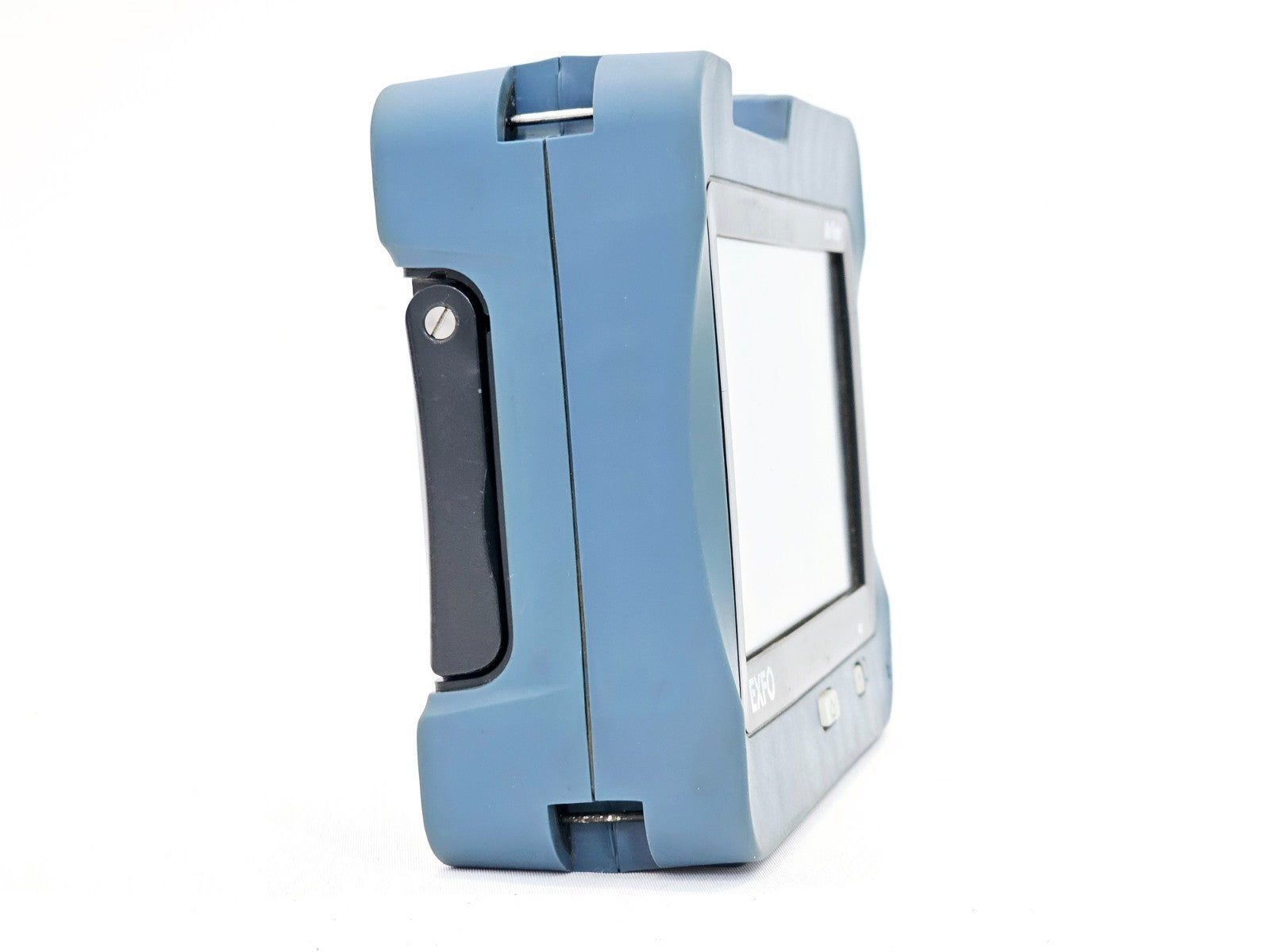

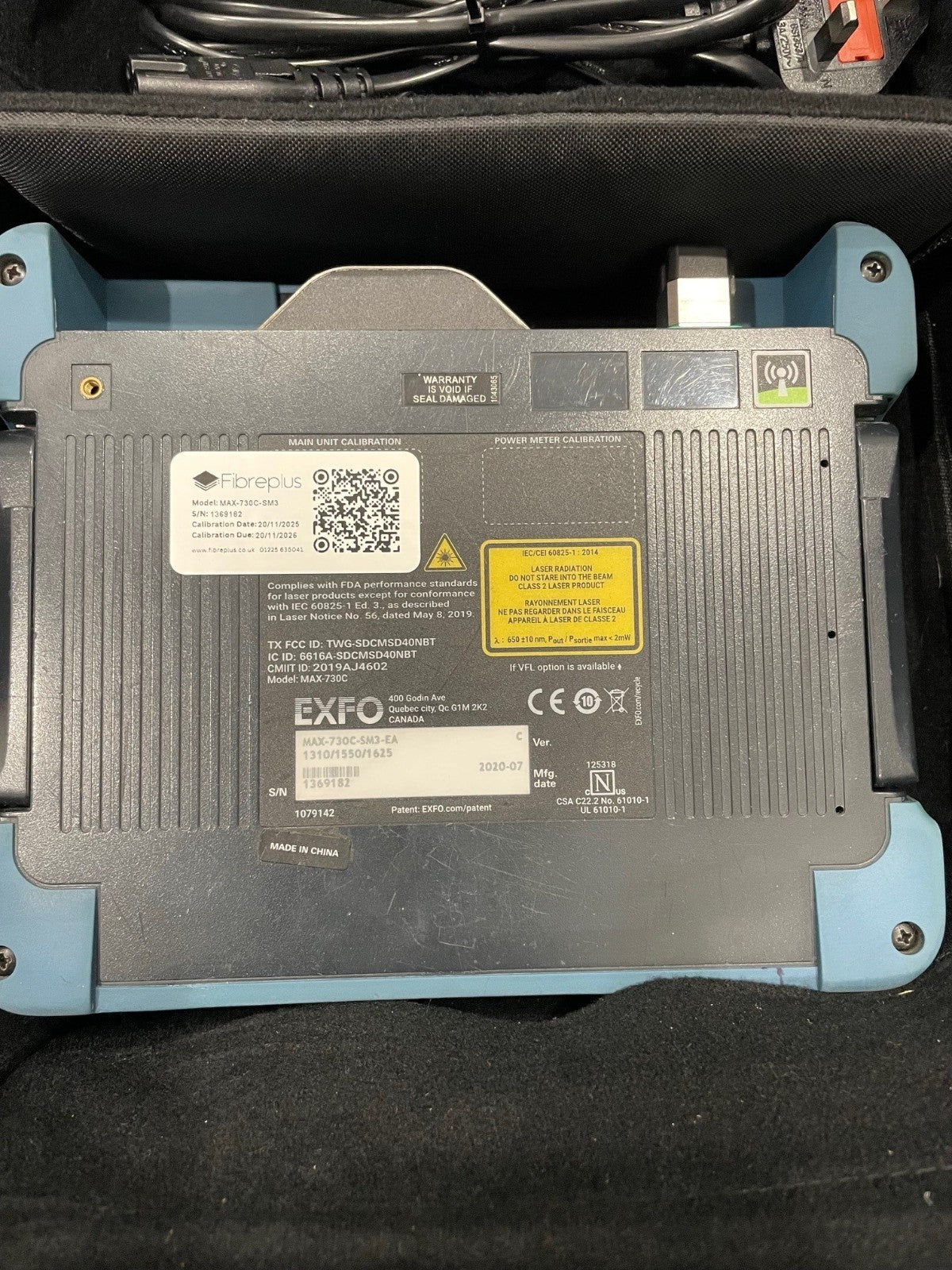

This EXFO MAX-730C-SM3 MaxTester has been calibrated in November 2025 and is in good working condition. It is supplied with iOLM and iADV software options activated. No additional accessories are specified as included with this unit.

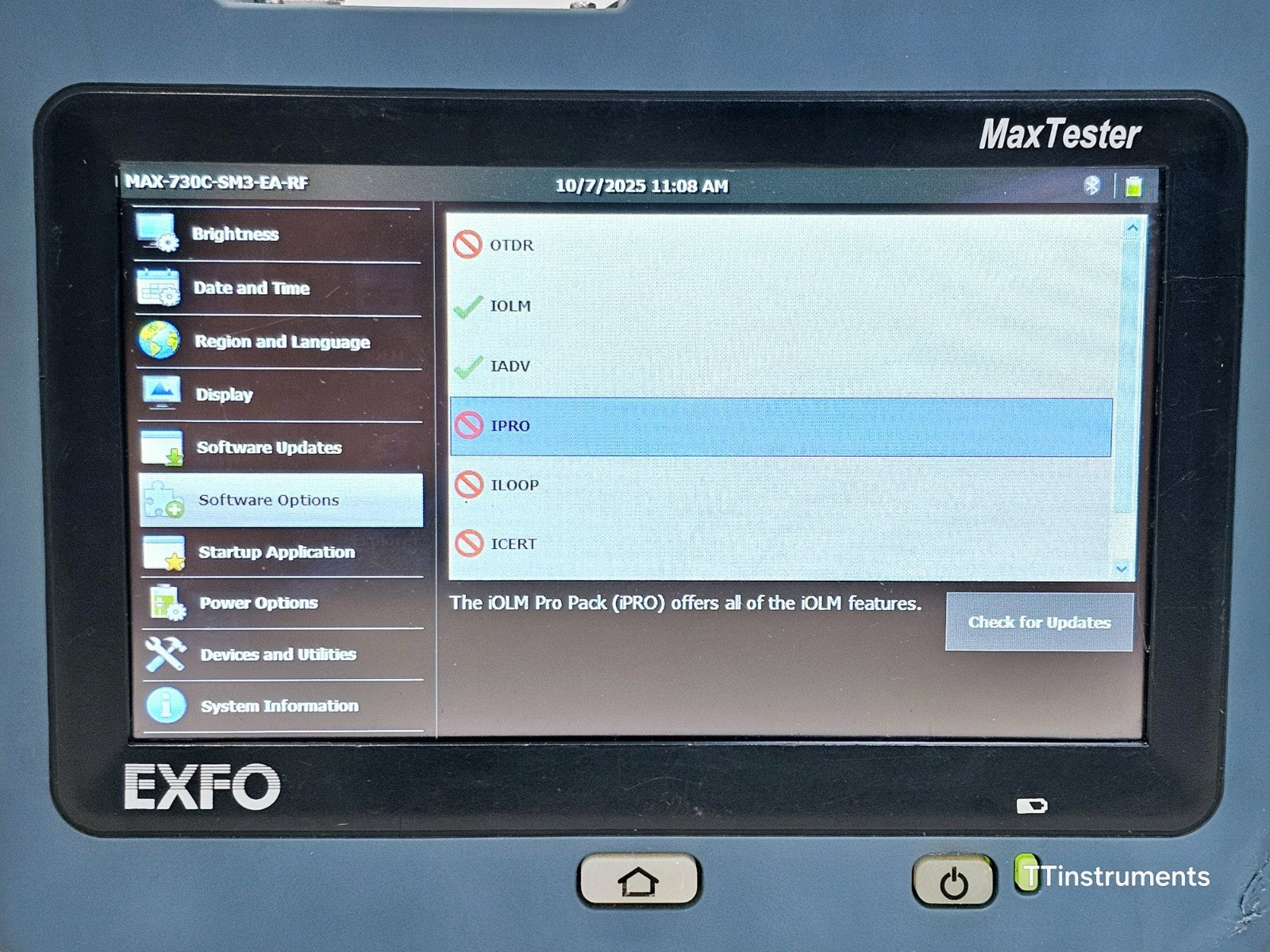

Active licensed software options:
• iOLM — intelligent Optical Link Mapper application
• iADV — advanced iOLM software option

The EXFO MaxTester 730C (MAX-730C) is a tablet-inspired, handheld PON/metro OTDR designed for complete end-to-end FTTH/PON fibre characterisation and troubleshooting. The SM3 optical configuration provides singlemode OTDR capability at 1310 nm, 1550 nm, and 1625 nm — all three wavelengths fully active (not live/filtered). This makes it well suited for standard singlemode fibre qualification across FTTx access networks, point-to-point metro links, and passive optical networks through splitters up to 1x128.

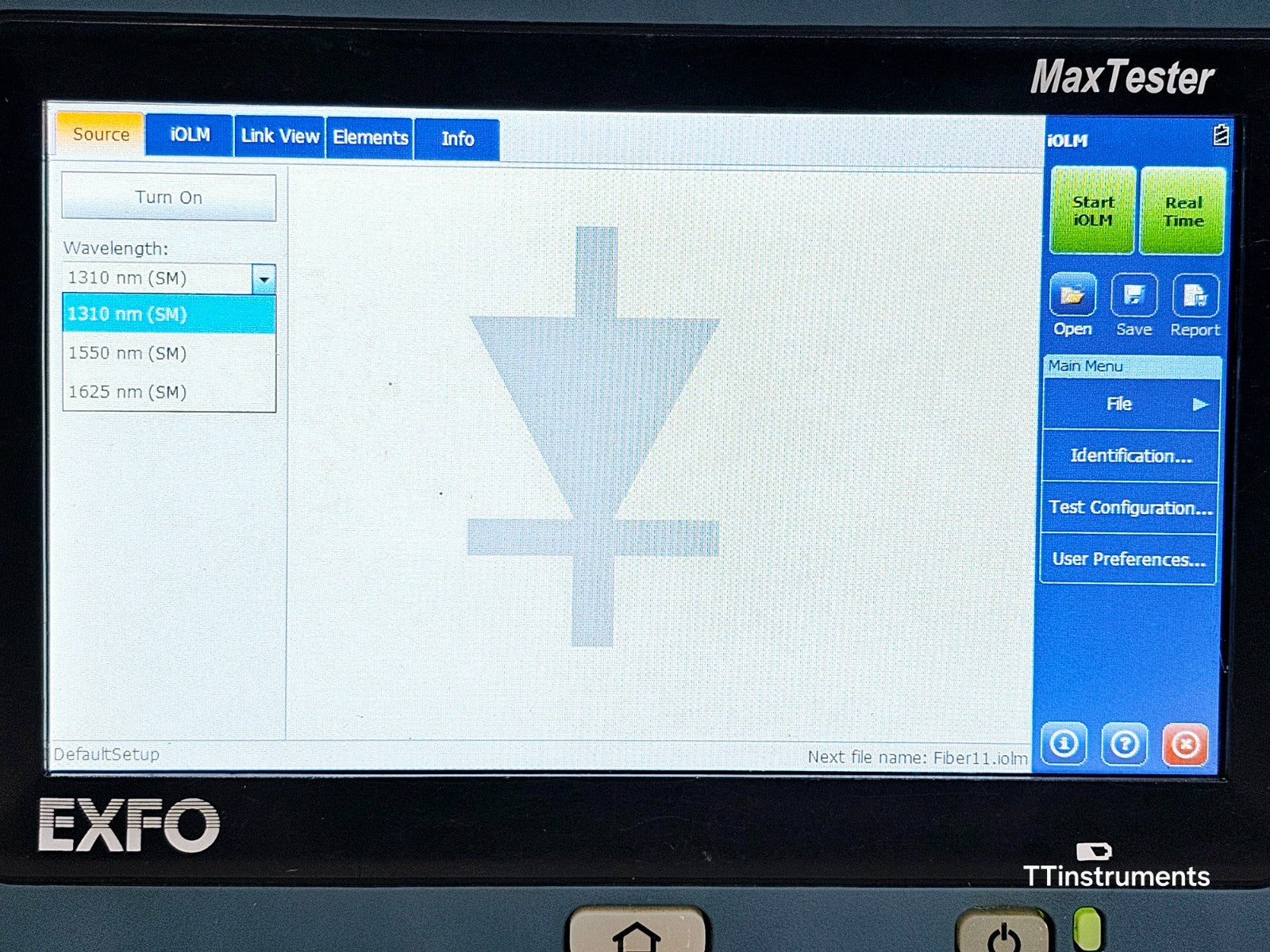

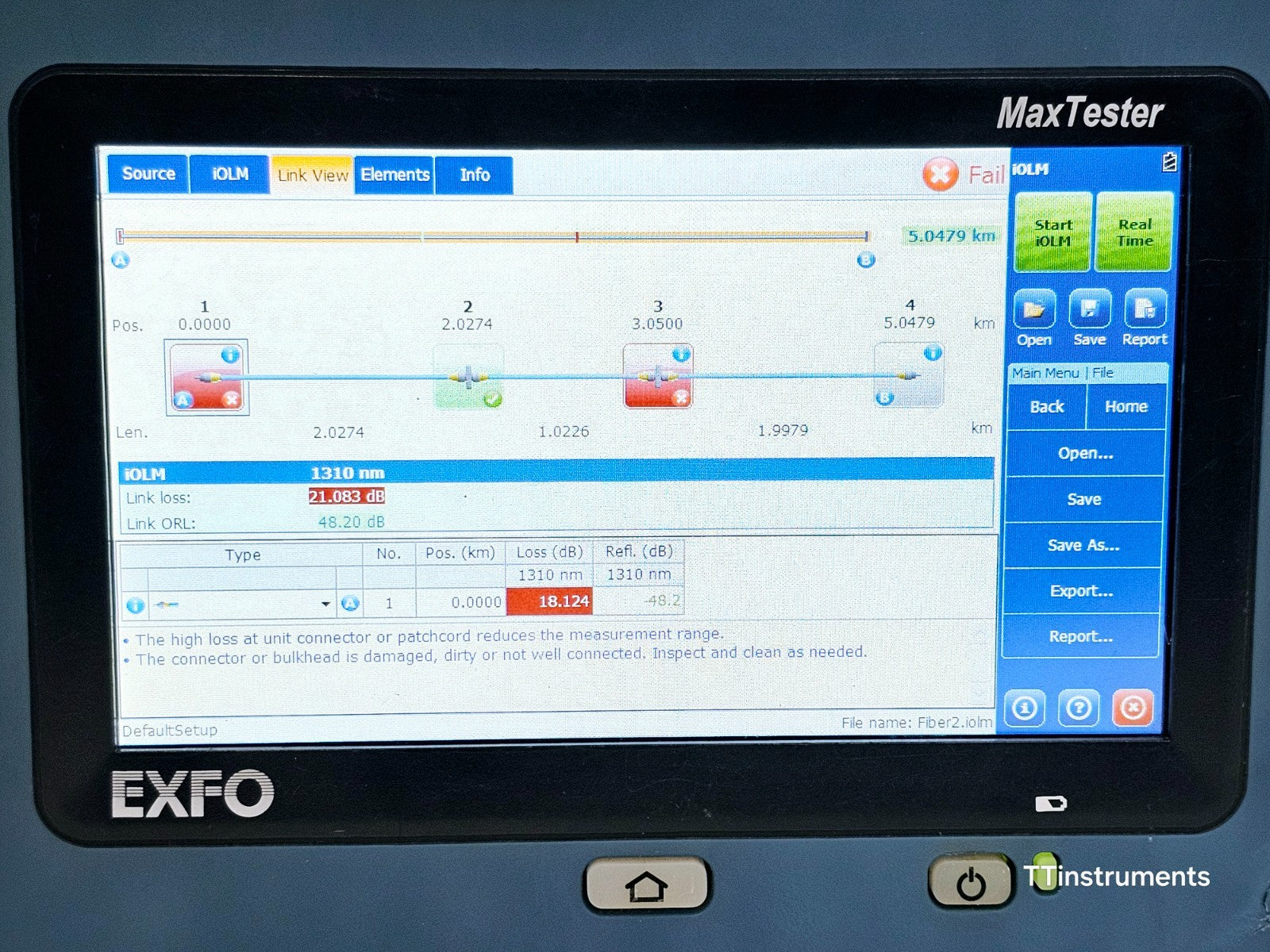

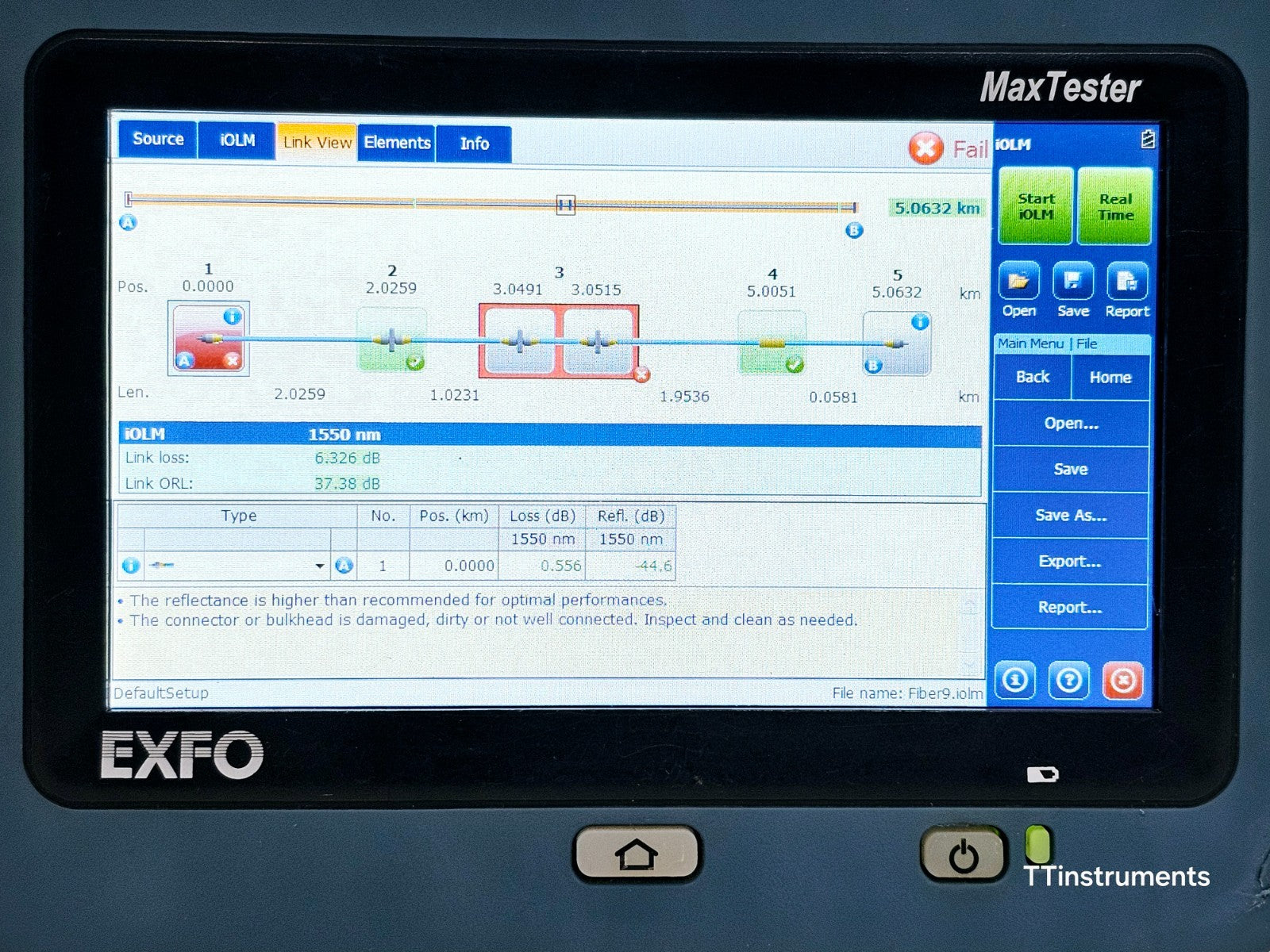

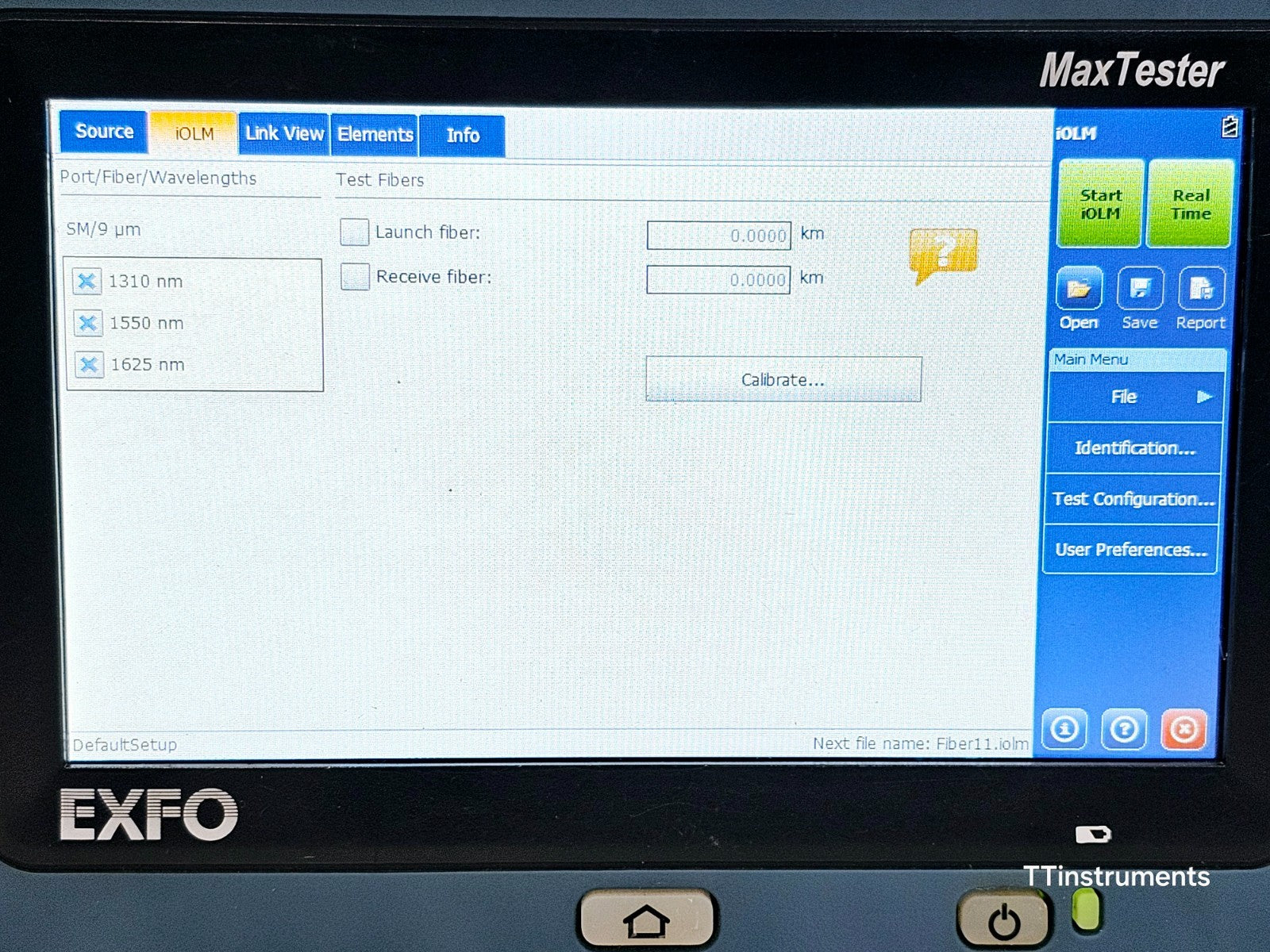

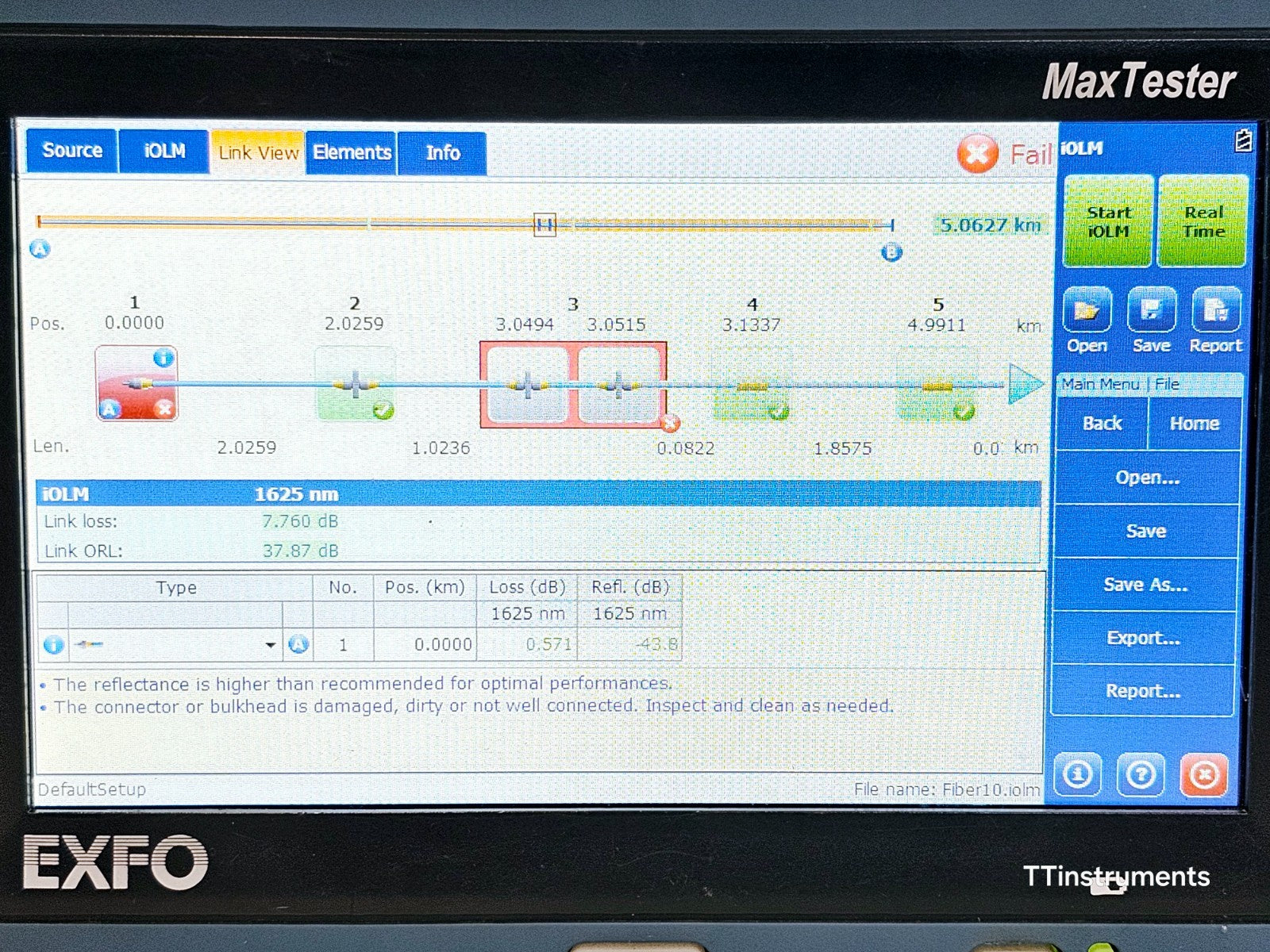

The MaxTester 730C delivers industry-leading optical performance in a rugged, lightweight form factor with a 7-inch outdoor-enhanced touchscreen — the largest display in its class. The intelligent Optical Link Mapper (iOLM) application automates multi-pulse OTDR acquisitions, presenting results as a clear link map with pass/fail indicators, eliminating the need for manual trace configuration or expert interpretation. The optional iADV (advanced) licence unlocks additional iOLM capabilities including grouped events and bidirectional analysis for enhanced characterisation accuracy.

Key Features:
- Triple-wavelength singlemode OTDR: 1310 nm, 1550 nm, 1625 nm
- iOLM-ready: automated, one-touch fibre link testing with go/no-go results
- Icon-based linear view for simplified OTDR trace reading
- Automatic macrobend finder
- Windows-like intuitive GUI with instant boot-up
- Plug-and-play hardware options (power meter, VFL, WiFi/Bluetooth)
- VNC remote control capability

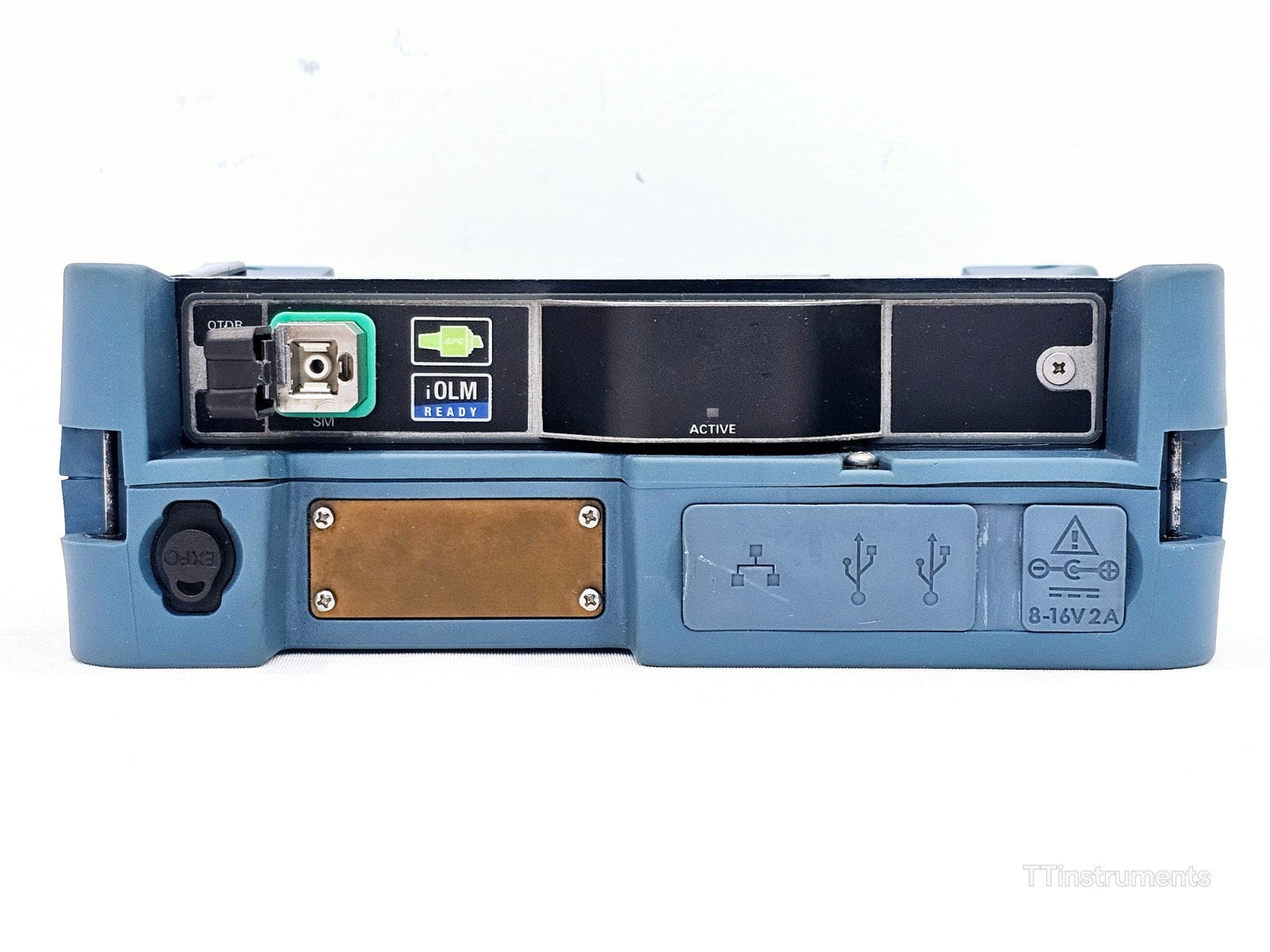

- 2 x USB 2.0, RJ45 10/100 Mbits/s Ethernet connectivity
- 2 GB internal storage (~20,000 OTDR traces)

Technical Specifications (MAX-730C-SM3):

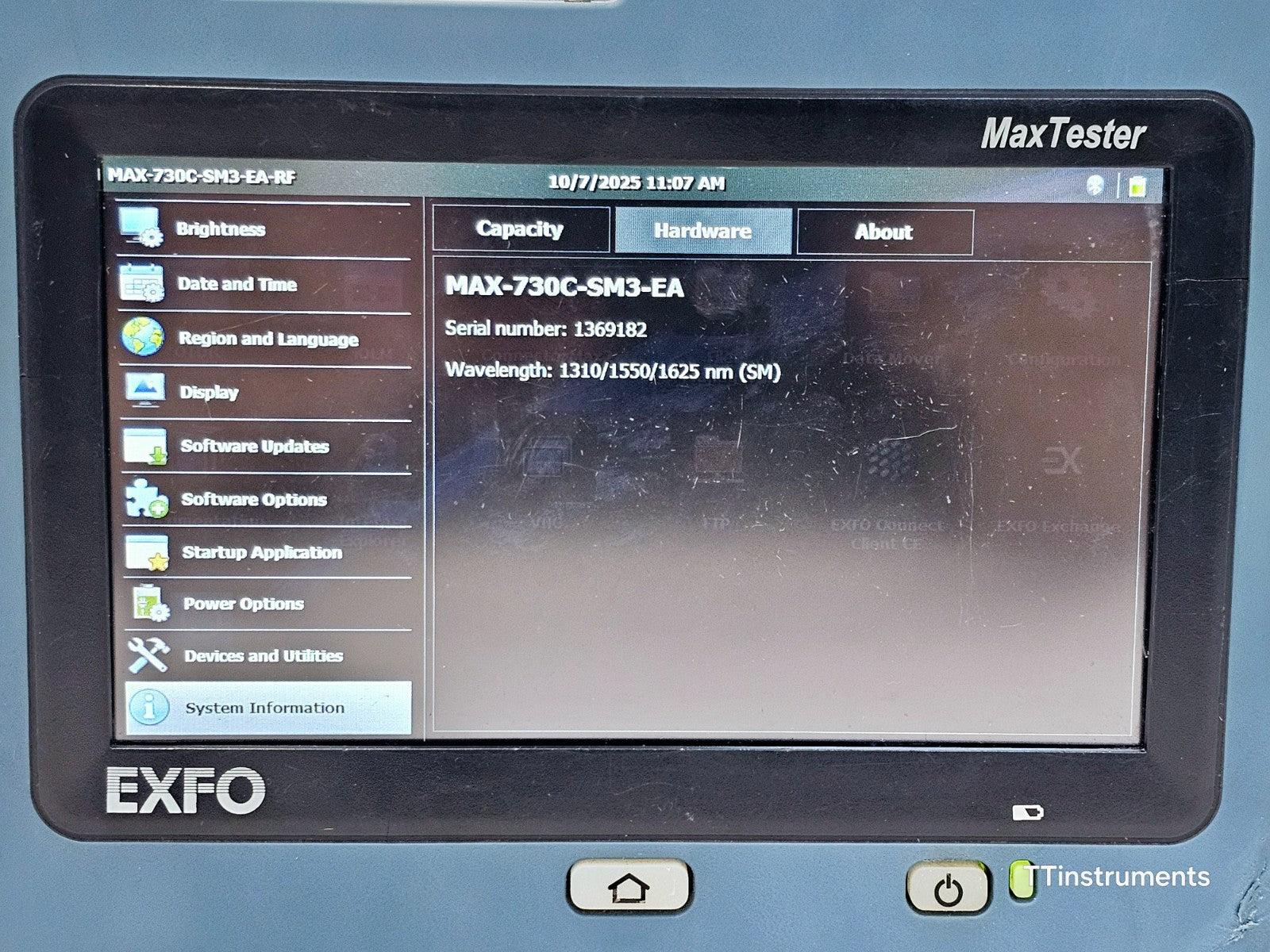

Optical Configuration: Singlemode — SM3
Wavelengths: 1310 nm / 1550 nm / 1625 nm
Dynamic Range: 39 / 38 / 39 dB
Event Dead Zone (EDZ): 0.5 m
Attenuation Dead Zone (ADZ): 2.5 m
Distance Range: 0.1 km to 400 km
Pulse Width: 3 ns to 20,000 ns
Loss Threshold: 0.01 dB
Loss Resolution: 0.001 dB
Sampling Points: 256,000
Display: 7-inch outdoor-enhanced touchscreen, 800 x 480 TFT
Internal Storage: 2 GB (~20,000 reflectograms)
Battery Life: Up to 12 hours continuous operation
Interfaces: 2 x USB 2.0, RJ45 10/100 Mbits/s
Power Supply: AC/DC adapter, 100–240 VAC, 50–60 Hz
Dimensions: 166 x 200 x 68 mm (approx.)
Weight: Approx. 800 g
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +70 °C

Applications:
- FTTx/PON testing through optical splitters (up to 1x128)
- Access network point-to-point (P2P) testing
- Metro links testing (P2P)
- Live fibre troubleshooting
- Network commissioning and maintenance

EXFO MaxTester 730C official spec sheet (v13) — full technical specifications and ordering information: Download PDF

EXFO OTDR User Guide — covers MAX-730C operation, measurements, and specifications: Download PDF

EXFO MaxTester 730C spec sheet (earlier version) — ProFiber hosted PDF: Download PDF
