Condition: Used — For parts or not working

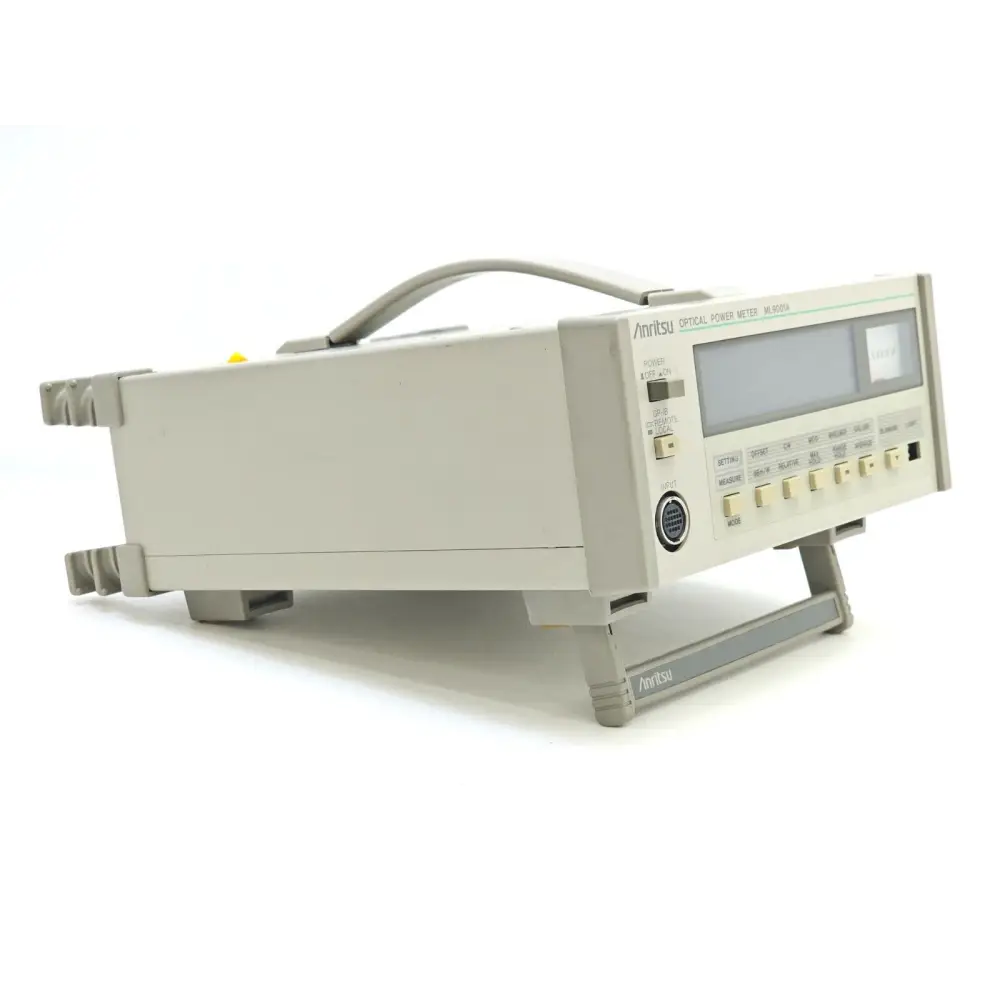

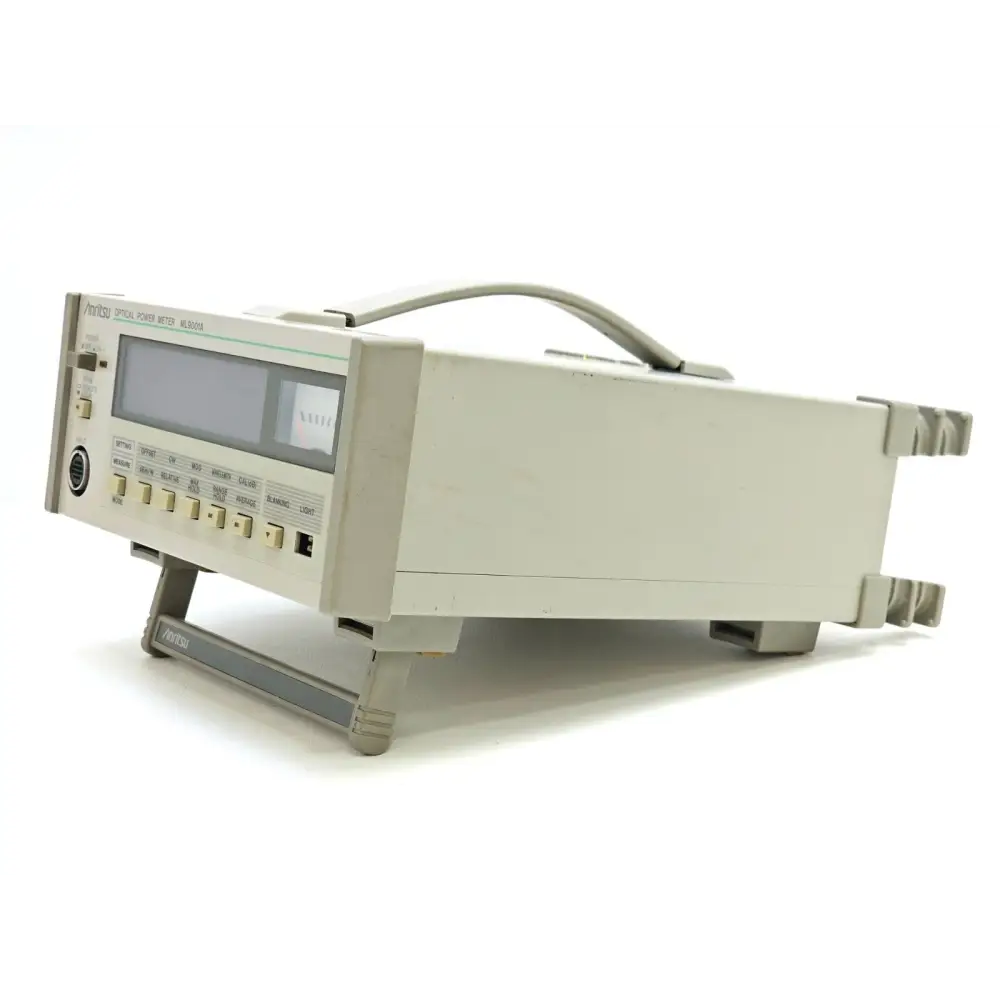

This Anritsu ML9001A single-channel optical power meter is offered for parts or repair. Please note that one of the front-panel buttons is missing. No additional accessories or items are listed as included with this unit.

Included items:
• Anritsu ML9001A main unit only (one front-panel button missing)

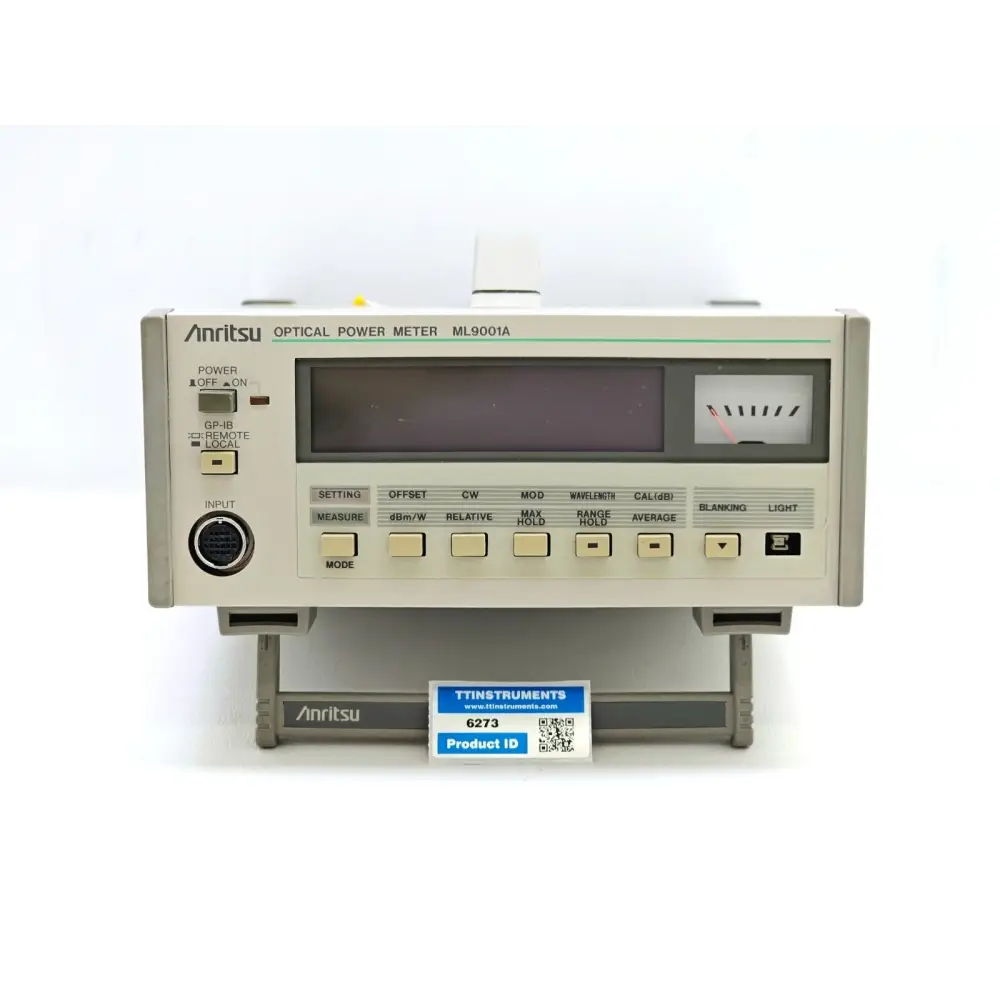

The Anritsu ML9001A is a single-channel digital-display optical power meter designed to ensure accuracy and linearity over a wide wavelength range for reliable optical power measurement. It supports a wide measurement level range from –100 to +20 dBm, made possible by suppression of internal reflection in the power sensors. The instrument features automatic calibration of all connected power sensors within the specified wavelength range, achieving ±5% accuracy at –23 dBm and ±0.15 dB linearity referenced to –23 dBm.

The ML9001A supports 12 modulation frequencies including 270 Hz for modulated light measurement, and is compatible with the MG9001A and MG9002A Stabilized Light Sources to form a complete optical loss test set. Its optical connector adaptor system allows rapid interchange of connector types across all power sensor ports. Internal coating on the power sensors suppresses reflected light, reducing measurement errors in both free-beam and fibre-coupled configurations.

With GPIB connectivity, the ML9001A achieves a measurement speed of 30 ms/point, cutting automated measurement time by more than 50% compared to conventional instruments. Up to 1000 data points can be stored and transferred via GPIB. The instrument can be stacked with Anritsu MG-series stabilised light sources for a compact, high-performance optical loss test set.

Key Specifications:
Instrument Type: Single-channel digital-display optical power meter
Measurement Level Range: –100 to +20 dBm
Accuracy: ±5% at –23 dBm (auto-calibrated)
Linearity: ±0.15 dB (–23 dBm reference)
Modulation Frequencies: 12 frequencies including 270 Hz
GPIB Measurement Speed: 30 ms/point
GPIB Data Storage: Up to 1000 data points
Optical Connector System: Interchangeable adaptor type (FC standard)
Fibre Core Diameter (guaranteed): Up to 62.5 µm, NA up to 0.29
EMC Compliance: EN55011:1991 Group 1 Class A; EN50082-1:1992
Power Consumption: 40 VA max

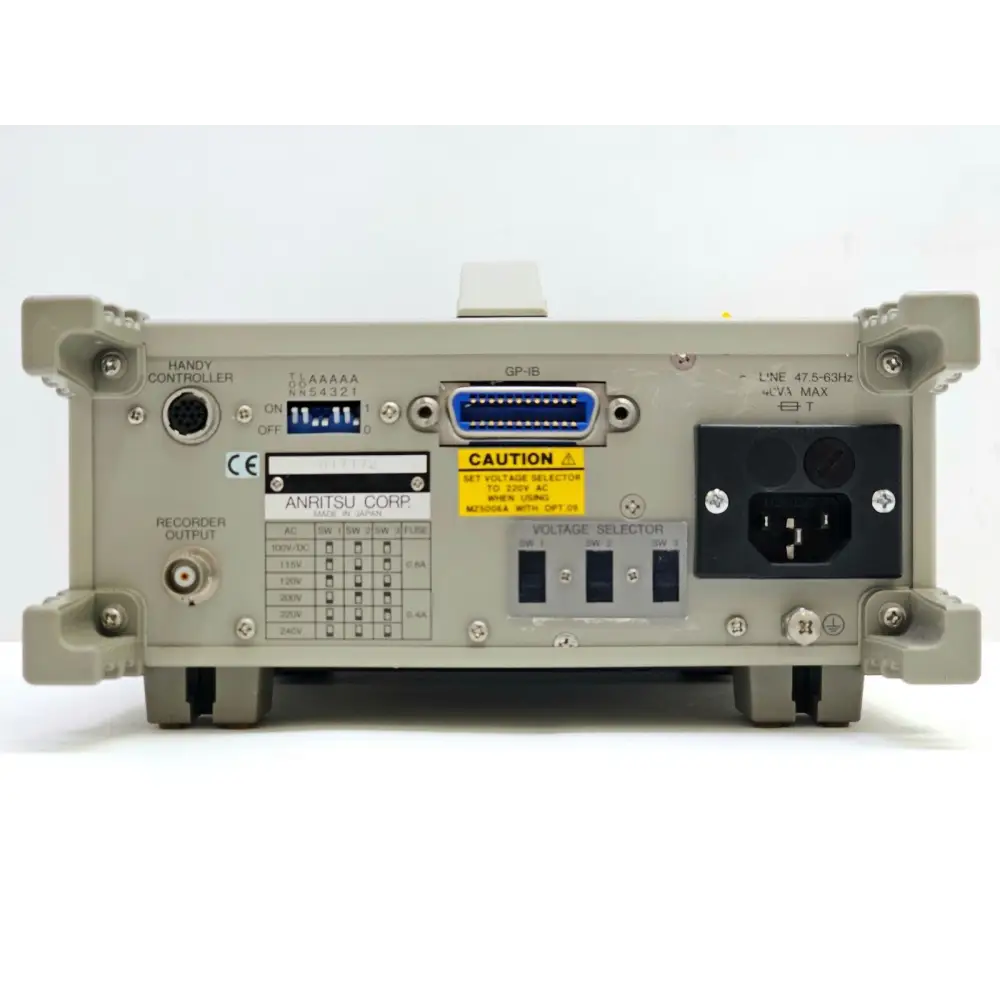

Interface: GPIB (GP-IB), Handy Controller connector
Application: Optical fibre loss measurement, optical device performance evaluation, multi-core fibre cable testing

Anritsu ML9001A Optical Power Meter Datasheet (PDF): Download PDF

Anritsu ML9001A Optical Power Meter Data Sheet — hosted by KC Usercontent (PDF): Download PDF

Anritsu ML9001A Operation Manual (PDF) — via repeater-builder.com: Download PDF
