Condition: For parts or not working

This Lonza 4D-Nucleofector Core and X Unit combination is being sold for parts or repair. The Core Unit is stuck on the boot screen and will not load the operating software. Sold as-is for repair or spares — no returns accepted.

Included with this listing:

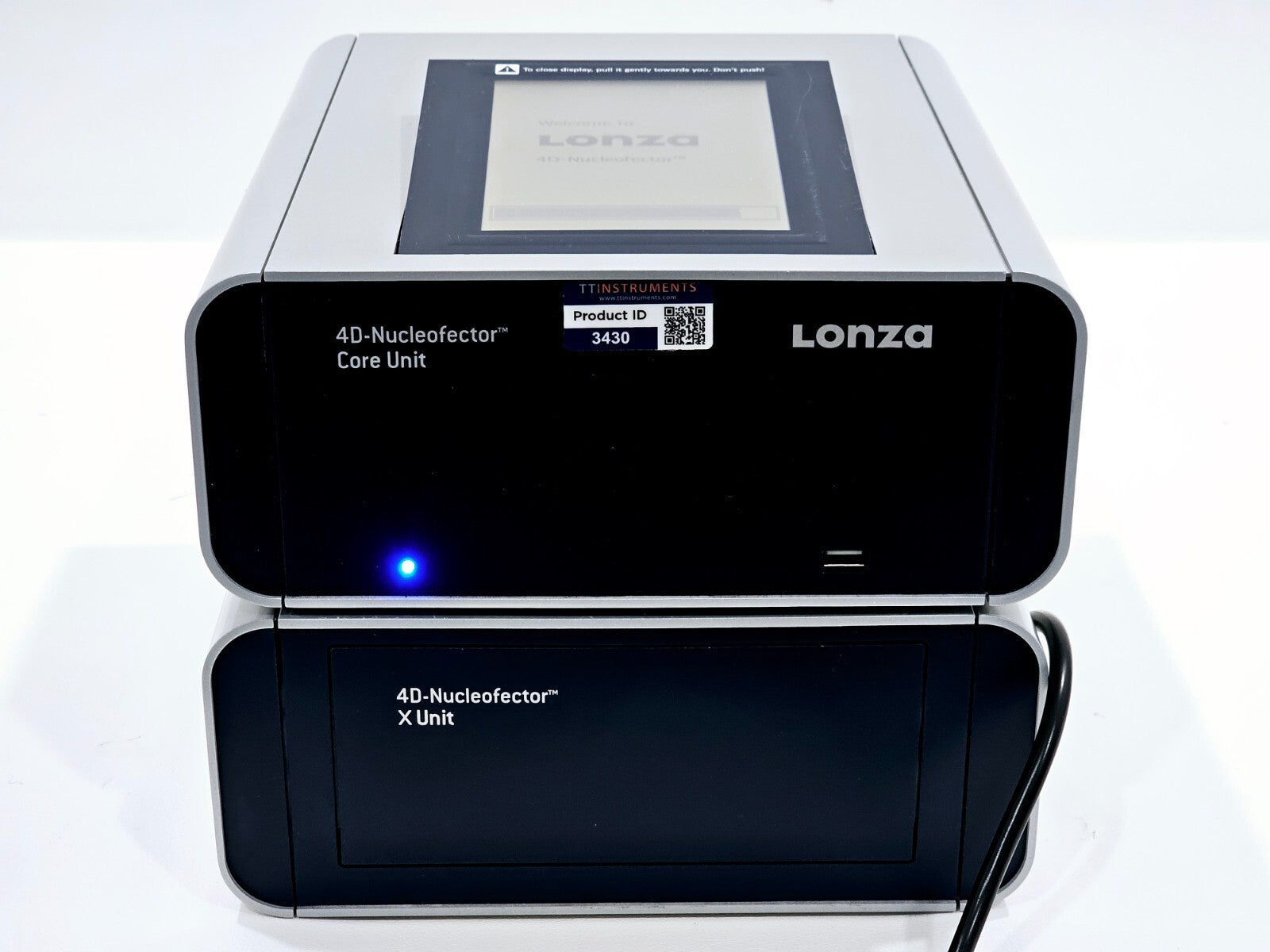

• Lonza 4D-Nucleofector Core Unit
• Lonza 4D-Nucleofector X Unit

The Lonza 4D-Nucleofector System is a modular electroporation platform designed for high-efficiency transfection of cell lines and primary cells, including difficult-to-transfect cell types. The system combines a Core Unit with interchangeable functional units to provide flexible, scalable Nucleofection across a range of research applications including gene expression studies, RNAi experiments, CRISPR/Cas9 genome editing, and protein production.

The Core Unit serves as the central controller for the entire 4D-Nucleofector System and connects to functional units via Lonza interface cables. It features a 5.7-inch foldable touchscreen display and runs intuitive software for designing, saving, and loading experimental setups. A USB port enables software updates and data transfer. A PC Editor software application allows experiments to be defined on a computer and transferred to the instrument via USB.

The X Unit is a functional module that supports Nucleofection of various cell numbers in different formats. It accommodates both 16-well 20 µL Nucleocuvette Strips and single 100 µL Nucleocuvette Vessels, enabling seamless transfer of conditions between different vessel types. It also features HV connectivity for the 96-well Shuttle Device.

--- Core Unit Technical Specifications ---
Function: Central control unit for the 4D-Nucleofector System
Display: 5.7-inch foldable touchscreen
Dimensions (W x H x D): 24.5 × 14.7 × 28 cm / 9.7 × 5.8 × 11.0 in

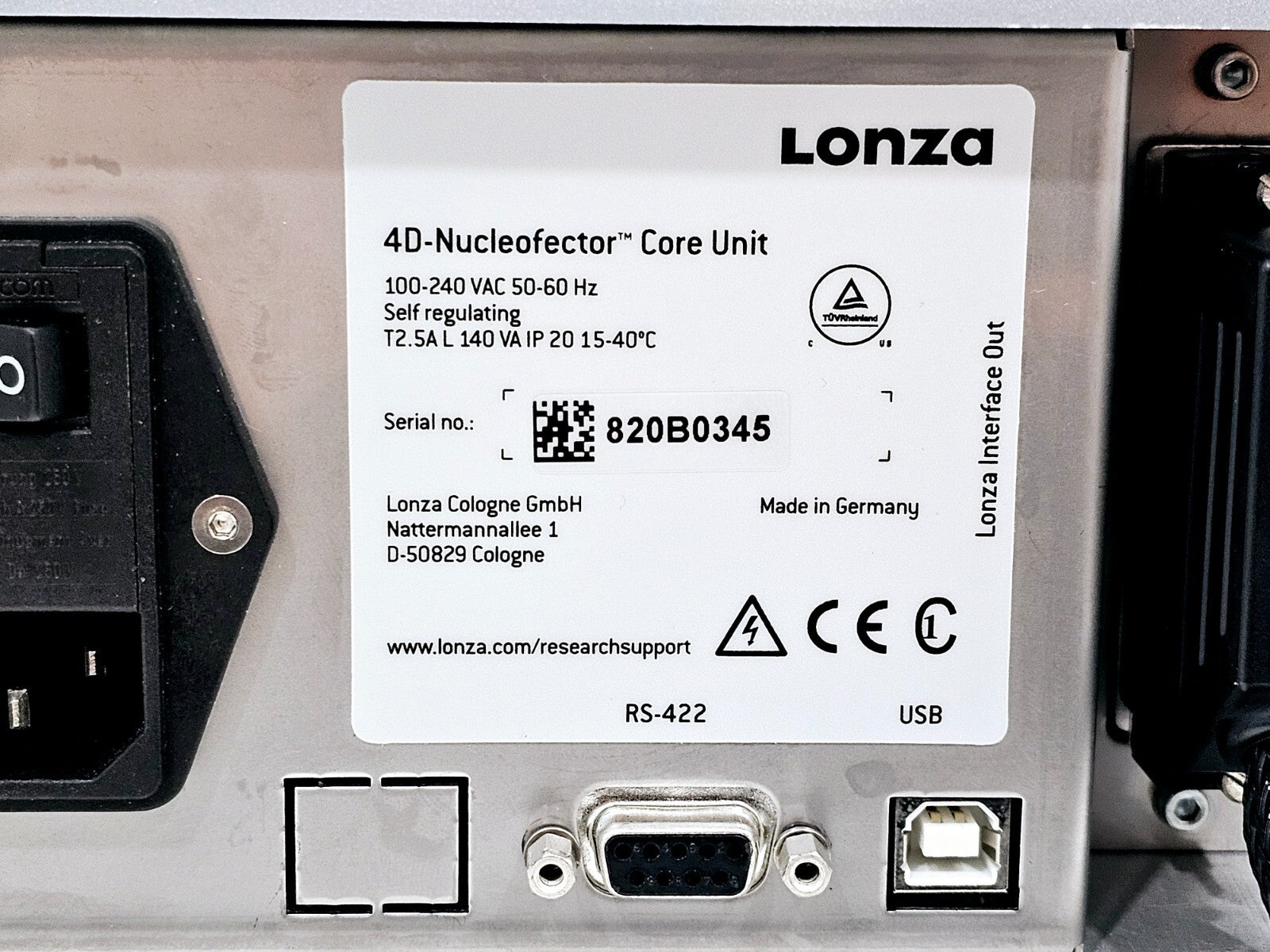

Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 140 VA

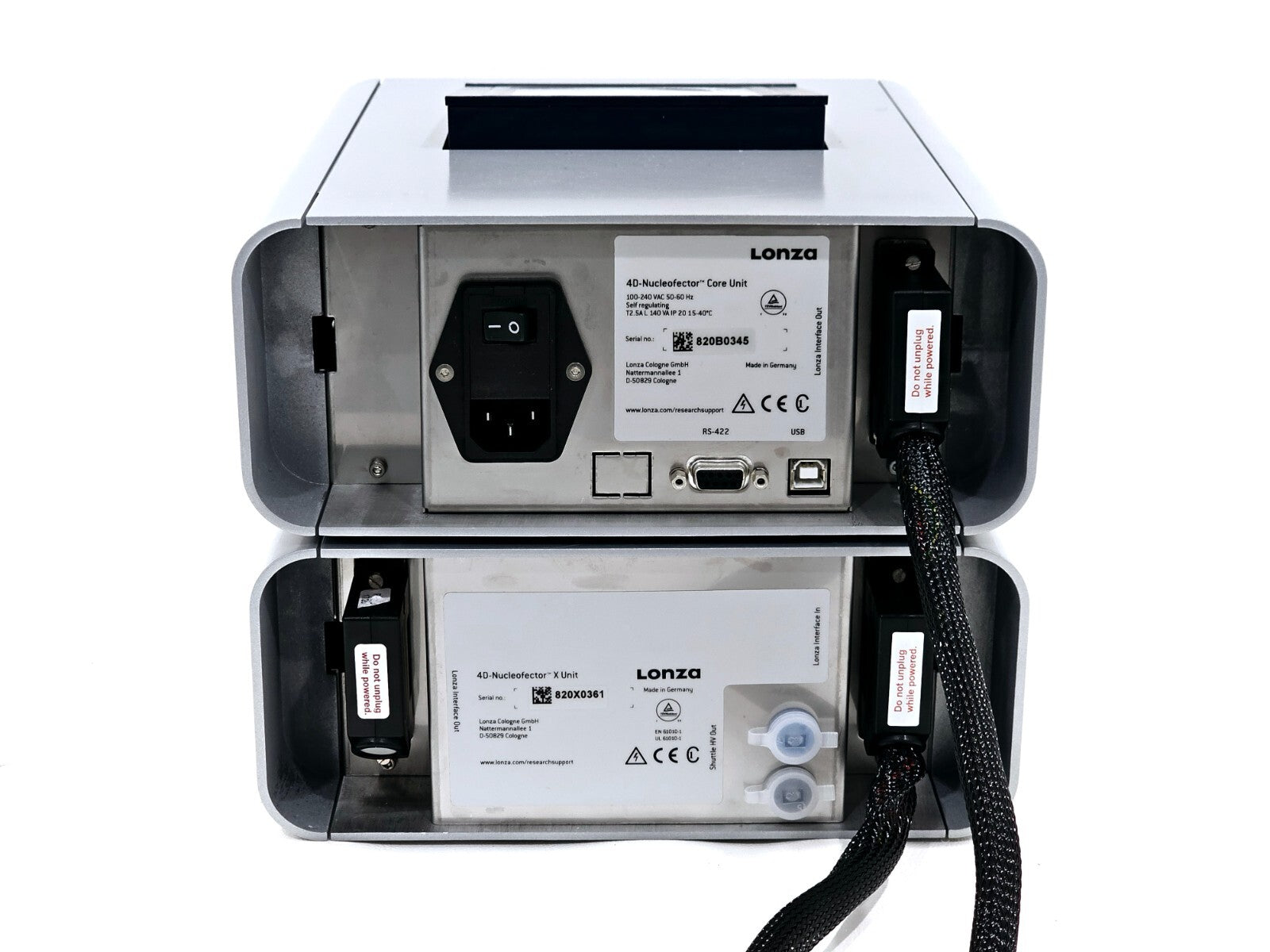

Interface: RS422 Lonza interface for module connection

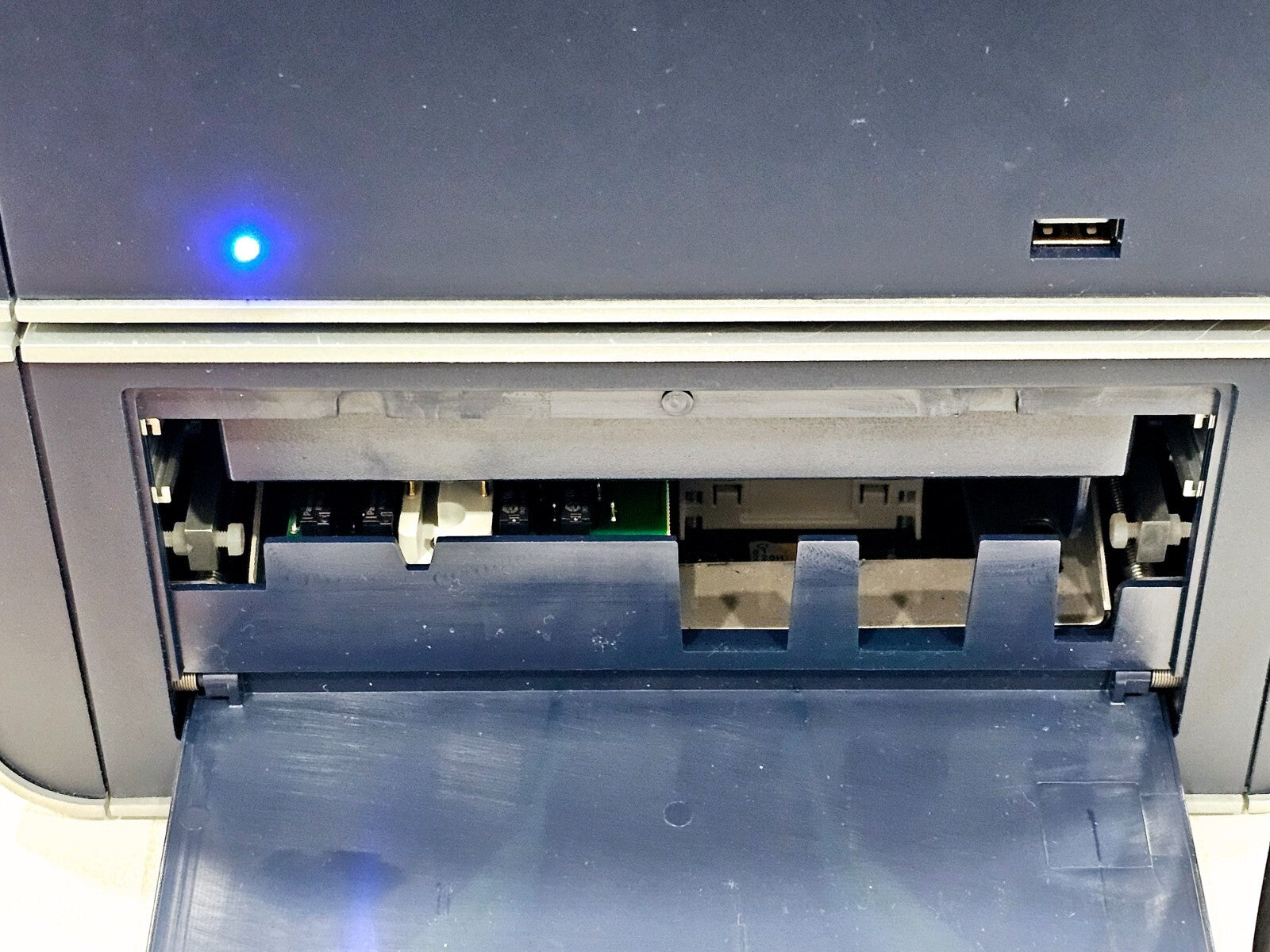

USB Port: Front-mounted, for data transfer and firmware updates
Certification: CE Listed
Manufactured in: Germany

--- X Unit Technical Specifications ---
Function: Functional module supporting Nucleofection in multiple formats
Cell Number Range: 2×10⁴ to 2×10⁷ cells
Compatible Vessels: 20 µL Nucleocuvette Strips (16-well); 100 µL single Nucleocuvette Vessels
Compatible Core Units: AAF-1001B, AAF-1002B, AAF-1003B
Dimensions (W x H x D): 24.5 × 10.5 × 28 cm / 9.7 × 4.1 × 11.0 in

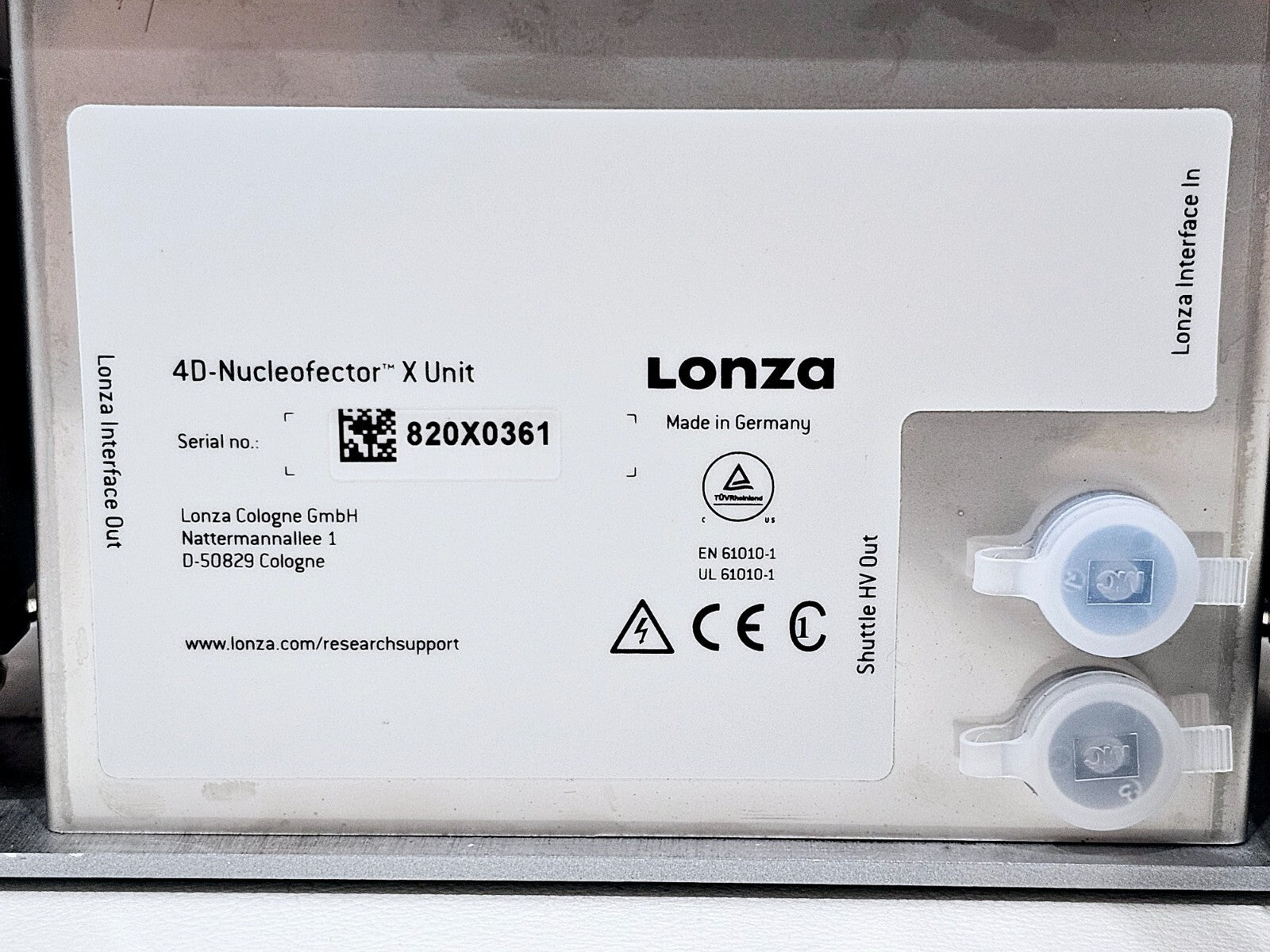

Shuttle HV Out: Yes (for 96-well Shuttle Device connectivity)
Manufactured in: Germany

--- System Applications ---
Target Users: Molecular biology, cell biology, and biotechnology research laboratories
Applications: Gene expression, siRNA/RNAi knockdown, CRISPR/Cas9 genome editing, plasmid transfection, primary cell transfection
Optimized Protocols: Over 325 cell-type-specific protocols available via Lonza knowledge database

Lonza 4D-Nucleofector System Manual (First Generation) — full user manual for Core, X, Y, and LV Units: Download PDF

Lonza 4D-Nucleofector System Manual (Harvard HMS mirror) — system manual for Core, X, Y units: Download PDF
